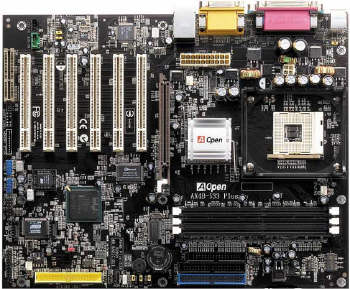

AX4B-533 Plus
型号: AX4B-533 Plus
形式: ATX
内存槽: DIMM x 3
芯片组: Intel 845E芯片组
CPU总线频率
标准: 533
最大: 992
附注: Serial ATA/ Dr. Voice II/ USB 2.0/ ATA133/ 集成AC'97
2.2声卡(5.1声道)/集成网卡
主要特点支持533MHz FSB的Intel Pentium 4 Socket 478 CPU
支持PC2100 / PC1600 DDR SDRAM
支持Serial ATA
支持AGP保护技术
免跳线设计
集成Realtek 10/100Mbps LAN网卡
Dr. Voice II
Dr. LED (用户升级选配)
支持4X AGP模式
支持AC'97 2.2 / 集成音频解码芯片 (5.1声道l)
支持6个USB 2.0接口
支持Ultra DMA/133硬盘
(赠送UDMA/133数据线)
支持S/PDIF接口
支持EzRestore
支持EzWinFlash BIOS
支持Open JukeBox player
支持Vivid BIOS技术
以1MHz为单位进行CPU外频调整
Watch Dog Timer
在BIOS中对CPU核心电压进行微调
主板入侵监测传感器
硬件监控
网络唤醒 / Modem / Timer / 键盘/鼠标唤醒
兼容PCI Rev 2.2标准
自复式保险丝为键盘和USB 设备提供短路保护
AC电源自动恢复
支持ACPI S3(休眠至RAM) 和S4 (休眠至硬盘)
AOpen 附增软件包 (包括Norton Anti-Virus杀毒软件)
规格CPU: Intel Pentium 4处理器
芯片组: Intel 845E芯片组
结构: 6 PCI slots +1 AGP slot + 1 * CNR
最大主内存: 支持184pin DIMM*3的2GB DDR SDRAM
DIMM类型: 64/128/256/512MB/1GB
集成网卡: 主板集成Realtek RTL8100BL 10/100Mbps网卡接口
集成声卡: 集成Realtek ALC650 AC’97音频解码芯片(5.1声道)
主板外部I/O接口:
2个串行口 (支持 UART 16C550 )
1个并行口 (支持SPP/EPP/ECP)
1个E-IDE 通道 (Mode 4 and Bus master Ultra DMA 33/66/100/133，由Promise
IDE芯片控制)
2个E-IDE 通道(Mode 4 and Bus master Ultra DMA 33/66/100，由Intel ICH4芯片控制)
1个软盘驱动器接口(1.2/1.44/2.88MB)
2个USB (Universal Serial Bus)端口
1个10/100 Mbps网卡接口(选配)
1个PS/2 鼠标接口
1个PS/2 键盘接口
游戏/Midi 端口 ,Speaker-Out ,Line-In , Mic-In
主板接口:
2个Serial ATA接口, 红外接口, 网络唤醒接口 , Wake-On-Modem, CPU风扇, 风扇2, 风扇3, CD_IN,
AUX-IN, 前端音频, Dr. LED, S/PDIF, 主板入侵感应, 另附2个USB 2.0端口(可选购附加电缆)
电池: 3V 锂电池
环保功能: 具备
BIOS: Award Plug and Play 4Mb Flash ROM BIOS
主板尺寸: 305mm x 244mm, ATX型
Model: AX4B-533 Plus
Form Factor: ATX
Memory Slots: DIMM x 3
Chipsets: Intel 845E chipset
CPU Bus Clock
Spec: 533
Max: 992
Notes: Serial ATA/ Dr. Voice II/ USB 2.0/ ATA133/ AC'97 2.2 Audio (5.1
channel)/ LAN on board
Key FeaturesSupport 533MHz FSB for Intel Pentium 4 Socket 478 CPU
Support PC2100 / PC1600 DDR SDRAM
Support Serial ATA
Support AGP Protection Technology
Jumper-less Design
Support Realtek 10/100Mbps LAN controller on board
Dr. Voice II
Dr. LED (User Upgrade Optional)
Support 4X AGP mode
AC'97 2.2 Audio support/ Audio Codec onboard (5.1 channel)
Supports 6 USB 2.0 ports
Support Ultra DMA/133 HDD
(Additional UDMA/133 Cable included)
Support S/PDIF interface
Support EzRestore
Support EzWinFlash BIOS
Support Open JukeBox player
Support Vivid BIOS technology
1MHz Stepping Frequency Adjustment
Watch Dog Timer
CPU Vcore Adjustment for Overclockers through BIOS
Chassis Intrusion Detector
Hardware Monitoring
Wake On LAN / Modem / Timer / Keyboard / Mouse
PCI Rev 2.2 Compliant
Resetable Fuse Providing Short Circuit Protection for Keyboard and USB
Device
AC Power On Auto Recovery
ACPI S3(Suspend to RAM) & S4 (Suspend to Disk) support
AOpen Bonus Pack CD (Norton Anti-Virus included)
SpecificationsCPU: Intel Pentium 4 Processor
ASIC: Intel 845E Chipset
Architecture: 6 *PCI slots +1* AGP slot + 1 * CNR
Max. Main Memory: Max. 2GB DDR SDRAM for 184pin DIMM*3
DIMM Type: 64/128/256/512MB/1GB
On Board LAN: Realtek LAN controller on board for 10/100Mbps Ethernet
On Board Sound: Realtek ALC650 AC’97 CODEC on board (5.1 channel)
On Board I/O:
2 Serial Ports (UART 16C550 Support)
1 Parallel Port (SPP/EPP/ECP Support)
1 Channel E-IDE (Mode 4 and Bus master Ultra DMA 33/66/100/133
supported by Promise IDE Chip)
2 Channel E-IDE (Mode 4 and Bus master Ultra DMA 33/66/100 supported by
Intel ICH4)
1 Floppy Drive Connector (1.2/1.44/2.88MB)
2 Universal Serial Bus Ports
1 10/100 Mbps Ethernet Port
1 PS/2 Mouse Port
1 PS/2 Keyboard Port
Game/Midi Port ,Speaker-Out ,Line-In , Mic-In
Onboard Connector:
2 Serial ATA Ports, IrDA, Wake-On-LAN , Wake-On-Modem, CPU Fan, Fan2,
Fan3 , CD_IN, AUX-IN, FRONT AUDIO, Dr. LED, S/PDIF, Chassis intrusion
connector, Additional 4 USB 2.0 Ports (via optional cable)
Battery: 3V Lithium Battery
Green Function: Yes
BIOS: Award Plug and Play 4Mb Flash ROM BIOS
Board Size: 305mm x 244mm, ATX Form Factor
