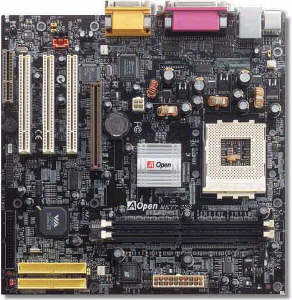

Model: MK77-333

Form Factor: Micro ATX

Memory Slots: DIMM x 2

Chipsets: VIA Apollo KT333

CPU Bus Clock

Spec: 266(EV6)

Max: 332(EV6)

Notes: ATA/133 / AC'97 2.2 Audio support / DDR333 SDRAM / LAN on board

Key FeaturesSupport 266MHz(EV6) System Bus for AMD Athlon & Duron Socket A CPU

Support PC2700 / PC2100 / PC1600 DDR SDRAM

Support Realtek 10/100Mbps LAN controller on board

Jumper-less Design

Support 4X/2X/1X AGP mode

AC'97 2.2 Audio support / Audio Codec onboard

Support Ultra DMA/133 HDD

1MHz Stepping Frequency Adjustment

Support S/PDIF interface

Supports 4 USB ports

Chassis Intrusion Detector

Hardware Monitoring

Wake-On-LAN / RTC Timer / Keyboard / Mouse

Watch Dog Timer

AC Power on Auto Recovery

PCI Rev 2.2 Compliant

Resetable Fuse Providing Short Circuit Protection for Keyboard and USB Device

ACPI S3(Suspend to RAM) & S4 (Suspend to Disk) support

AOpen Bonus Pack CD

SpecificationsCPU: AMD Athlon / XP (Socket A)

AMD Duron (Socket A) CPU Table

ASIC: VIA KT333 / VT8233A AGPset

Architecture: 3 PCI slots +1 AGP slot + 1 CNR slot

Max. Main Memory: Max. 2GB DDR SDRAM for 184pin DIMM*2

DIMM Type: 64/128/256/512 MB/1GB

On Board Sound: Realtek AC’97 CODEC on board

On Board LAN: Realtek LAN controller on board for 10/100Mbps Ethernet

On Board I/O:

2 Serial Ports (UART 16C550 Support)

1 Parallel Port (SPP/EPP/ECP Support)

2 Channel E-IDE (Mode 4 and Bus master Ultra DMA 33/66/100/133 Support)

1 Floppy Drive Connector (1.2/1.44/2.88MB)

2 Universal Serial Bus Ports

1 10/100 Mbps Ethernet Port

1 PS/2 Mouse Port

1 PS/2 Keyboard Port

Game/Midi Port ,Speaker-Out ,Line-In , Mic-In

Onboard Connector:

CD-IN, MODEM-CN, Front Audio, IrDA, Wake-On-LAN, CPU FAN, FAN2, FAN3, Chassis intrusion connector, S/PDIF, Additional 2 USB Ports (via Optional cable)

Battery: 3V Lithium Battery

Green Function: Yes

BIOS: Award Plug and Play 2Mb Flash ROM BIOS

Board Size: 244mm x 244mm, Micro ATX Form Factor
