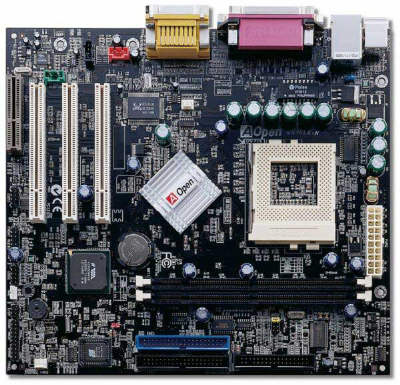

| MX36LE-N
Model: MX36LE-N
Form Factor: Micro ATX
Memory Slots: DIMM x 2
Chipsets: VIA Apollo PLE133 chipset
CPU Bus Clock
Spec: 133
Max: 150
Notes: AC'97 Audio, VGA on board / PC133
Key FeaturesSupport 100/133 Mhz FSB for Intel Celeron / Pentium !!! / VIA
Cyrix III Socket 370
Support PC100/133 SDRAM DIMM
Support Realtek 10/100 Lan Controller onboard
CPU clock ratio from 1.5 to 12.0
Integrated 2D/3D Graphics Engine with Dynamic Video Memory Technology
Support Ultra DMA/100 HDD (Additional UDMA/100 Cable included)
AC'97 2.1 Audio support / Audio Codec on board
Supports 4 USB ports
AC Power on Auto Recovery
Hardware Monitoring
Wake On LAN
Wake On RTC Timer
Zero Voltage Wake on Modem
PCI Rev 2.2 Compliant
Resetable Fuse Providing Short Circuit Protection for Keyboard and USB
Device
ACPI S3 (Suspend to RAM) & S4 (Suspend to Disk) support
AOpen Bonus Pack CD
SpecificationsCPU: Intel Celeron (FC-PGA Type)
Intel Pentium III (FC-PGA Type)
VIA Cyrix III CPU Table
ASIC: VIA Apollo PLE133 Chipset (VT8601A+ VT82C686B)
Architecture: 3 PCI slots + 1CNR slot
Max. Main Memory: Max. 1GB SDRAM ( PC-100 or PC-133 ) for 168pin DIMM*2
DIMM Type: 8/16/32/64/128/256/512 MB
On Board Lan: Realtek 10/100 LAN Controller onboard
Integrated Fast Ethernet MAC, physical chip and transceiver in one chip.
Support 10Mb/s and 100Mb/s N-way Auto Negotiation operation
On Board VGA:Integrated 2D/3D Graphic Engine
On Board Sound: AC’97
CODEC onboard
BIOS: Award Plug and Play 2Mb Flash ROM BIOS
On Board I/O:
1 Serial Ports (UART 16C550 Support) / 1 Optional Serial Port via
additional COM2 cable
1 VGA Port
1 Parallel Port (SPP/EPP/ECP Support)
2 Channel E-IDE (Mode 4 and Bus master Ultra DMA 33/66/100 Support)
1 Floppy Drive Connector (1.2/1.44/2.88MB)
2 Universal Serial Bus Ports
1 10/100Mbps LAN Port
1 PS/2 Mouse Port
1 PS/2 Keyboard Port
Game/Midi Port ,Speaker-Out ,Line-In , Mic-In
Onboard Connector:
CD_IN, Modem-CN, AUX_IN, IrDA , Wake-On-LAN, CPU Fan, FAN2, FRONT AUDIO,
Additional 2 USB Ports (via Optional cable), COM2,
Battery: 3V Lithium Battery
Green Function: Yes
BIOS: Award Plug and Play 2Mb Flash ROM BIOS
Board Size: 244mm x 218mm, Micro ATX Form Factor
|
