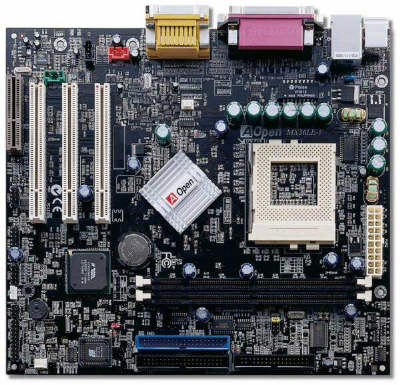

Model: MX36LE-V

Form Factor: Micro ATX

Memory Slots: DIMM x 2

Chipsets: VIA Apollo PLE133 chipset

CPU Bus Clock

Spec: 133

Max: 150

Notes: AC'97 Audio, VGA on board / PC133

Key FeaturesSupport 100/133 Mhz FSB for Intel Celeron / Pentium !!! / VIA Cyrix III Socket 370

Support PC100/133 SDRAM DIMM

CPU clock ratio from 1.5 to 12.0

Integrated 2D/3D Graphics Engine with Dynamic Video Memory Technology

Support Ultra DMA/100 HDD (Additional UDMA/100 Cable included)

AC'97 2.1 Audio support / Audio Codec on board

Supports 4 USB ports

AC Power on Auto Recovery

Hardware Monitoring

Wake On LAN

Wake On RTC Timer

Zero Voltage Wake on Modem

PCI Rev 2.2 Compliant

Resetable Fuse Providing Short Circuit Protection for Keyboard and USB Device

ACPI S3 (Suspend to RAM) & S4 (Suspend to Disk) support

AOpen Bonus Pack CD

SpecificationsCPU: Intel Celeron (FC-PGA Type)

Intel Pentium III (FC-PGA Type)

VIA Cyrix III CPU Table

ASIC: VIA Apollo PLE133 Chipset (VT8601A+ VT82C686B)

Architecture: 3 PCI slots + 1CNR slot

Max. Main Memory: Max. 1GB SDRAM ( PC-100 or PC-133 ) for 168pin DIMM*2

DIMM Type: 8/16/32/64/128/256/512 MB

On Board VGA: Integrated 2D/3D Graphic Engine

On Board I/O:

1 Serial Ports (UART 16C550 Support) / 1 Optional Serial Port via additional COM2 cable

1 VGA Port

1 Parallel Port (SPP/EPP/ECP Support)

2 Channel E-IDE (Mode 4 and Bus master Ultra DMA 33/66/100 Support)

1 Floppy Drive Connector (1.2/1.44/2.88MB)

2 Universal Serial Bus Ports

1 PS/2 Mouse Port

1 PS/2 Keyboard Port

Game/Midi Port ,Speaker-Out ,Line-In , Mic-In

Onboard Connector:

CD_IN, Modem-CN, AUX_IN, IrDA , Wake-On-LAN, CPU Fan, FAN2, FRONT AUDIO, Additional 2 USB Ports (via Optional cable), COM2,

Battery: 3V Lithium Battery

Green Function: Yes

BIOS: Award Plug and Play 2Mb Flash ROM BIOS

Board Size: 244mm x 218mm, Micro ATX Form Factor
