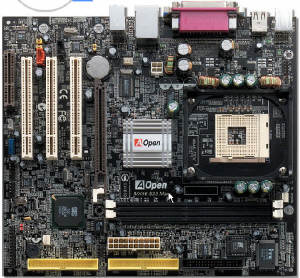

Model: MX46-533 Max

Form Factor: Micro ATX

Memory Slots: DIMM x 2

Chipsets: SiS 651/ 962

CPU Bus Clock

Spec: 533

Max: 720

Notes: IEEE 1394/ VGA on board/ LAN on board/ ATA/133/ AC'97 2.2 Audio support

Key FeaturesSupport PC2700/ PC2100 / PC1600 DDR SDRAM

Integrated Real256TM 2D/3D Graphics Accelerator on board

Support IEEE 1394

Jumper-less Design

Support 4X/2X AGP mode

Support Realtek 10/100Mbps LAN controller on board

AC'97 2.2 Audio support / Audio Codec on board (5.1 channel)

Supports 6 USB 2.0 ports

Support EzRestore

Support EzWinFlash BIOS

Support Ultra DMA/133 HDD

Wake-On-LAN / Modem / RTC Timer / Keyboard / Mouse

Hardware Monitoring

AC Power on Auto Recovery

PCI Rev 2.2 Compliant

Resetable Fuse Providing Short Circuit Protection for Keyboard and USB Device

ACPI S3(Suspend to RAM) & S4 (Suspend to Disk) support

AOpen Bonus Pack CD

SpecificationsCPU: Intel Pentium 4 Processor

CPU Table

ASIC: SiS 651 / 962 Chipset

Architecture: 3 PCI slots +1 AGP slot + 1 * CNR

Max. Main Memory: Max. 2GB DDR SDRAM for 184pin DIMM*2

DIMM Type: 64/128/256/512MB/1GB

On Board VGA: Integrated Real256TM 2D/3D Graphics Accelerator on board

On Board IEEE1394: Realtek PHY on board

On Board LAN: Realtek LAN PHY on board for 10/100Mbps Ethernet

On Board Sound: Realtek AC’97 CODEC on board (5.1 channel)

On Board I/O:

1 Serial Port (UART 16C550 Support)

1 VGA Port

1 Parallel Port (SPP/EPP/ECP Support)

2 Channel E-IDE (Mode 4 and Bus master Ultra DMA 33/66/100/133 Support)

1 Floppy Drive Connector (1.2/1.44/2.88MB)

4 Universal Serial Bus Ports (USB 2.0)

1 10/100 Mbps Ethernet Port

1 PS/2 Mouse Port

1 PS/2 Keyboard Port

Line-out ,Line-In , Mic-In

Onboard Connector:

IEEE 1394*2, IrDA, CPU FAN, FAN2, FAN3, CD_IN, MODEM_IN , FRONT AUDIO , COM2, Additional 2 USB Ports (via optional cable)

Battery: 3V Lithium Battery

Green Function: Yes

BIOS: Award Plug and Play 2Mb Flash ROM BIOS

Board Size: 244mm x 220mm, Micro ATX Form Factor
