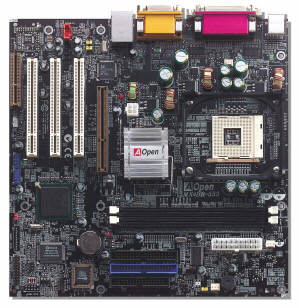

Model: MX4BR-533

Form Factor: ATX

Memory Slots: DIMM x 2

Chipsets: Intel 845E chipset

CPU Bus Clock

Spec: 533

Max: 992

Notes: FSB 533MHz/ USB 2.0/ AC'97 2.2 Audio/ LAN on board

Key FeaturesSupport 533MHz FSB for Intel Pentium 4 Socket 478 CPU

Support PC2100 / PC1600 DDR SDRAM

Support

AGP Protection Technology

Jumper-less Design

Support Realtek 10/100Mbps LAN controller on board

Dr. LED (User Upgrade Optional)

Support 4X AGP mode

AC'97 2.2 Audio support / Audio Codec on board

Supports 6 USB 2.0 ports

1MHz Stepping Frequency Adjustment

Watch Dog Timer

Chassis Intrusion Detector

Hardware Monitoring

Wake On LAN/ Timer/ Keyboard/ Mouse

PCI Rev 2.2 Compliant

Resetable Fuse Providing Short Circuit Protection for Keyboard and USB Device

AC Power On Auto Recovery

ACPI S3(Suspend to RAM) & S4 (Suspend to Disk) support

AOpen Bonus Pack CD

SpecificationsCPU: Intel Pentium 4 Processor

ASIC: Intel 845E Chipset

Architecture: 3 *PCI slots +1* AGP slot + 1 * CNR

Max. Main Memory: Max. 2GB DDR SDRAM for 184pin DIMM*2

DIMM Type: 64/128/256/512MB/1GB

On Board LAN: Realtek LAN controller on board for 10/100Mbps Ethernet

On Board Sound: Realtek AC’97 CODEC on board

On Board I/O:

2 Serial Ports (UART 16C550 Support)

1 Parallel Port (SPP/EPP/ECP Support)

2 Channel E-IDE (Mode 4 and Bus master Ultra DMA 33/66/100 Support)

1 Floppy Drive Connector (1.2/1.44/2.88MB)

2 Universal Serial Bus Ports

1 10/100 Mbps Ethernet Port

1 PS/2 Mouse Port

1 PS/2 Keyboard Port

Game/Midi Port ,Speaker-Out ,Line-In , Mic-In

Onboard Connector:

IrDA, Wake-On-LAN, CPU Fan, Fan2, Fan3 , CD_IN, MODEM-CN, FRONT AUDIO, Dr. LED, S/PDIF, Chassis intrusion connector, Additional 4 USB 2.0 Ports (via optional cable)

Battery: 3V Lithium Battery

Green Function: Yes

BIOS: Award Plug and Play 4Mb Flash ROM BIOS

Board Size:244mm x 244mm, Micro ATX Form Factor
