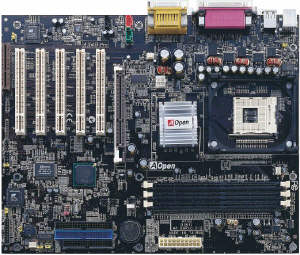

Model: AX4B Pro

Form Factor: ATX

Memory Slots: DIMM x 3

Chipsets: Intel 845

CPU Bus Clock

Spec: 400

Max: 992

Notes: DDR SDRAM / ATA/100 / AC'97 Audio / Dr. Voice

Key FeaturesSupport DDR (Double Data Rate) SDRAM

Jumper-less Design

Support Dr. LED

(Upgrade Optional)

Support Dr. Voice

Support 4X AGP mode

AC'97 2.1 Audio support / Audio Codec onboard

Supports 4 USB ports

Support Ultra DMA/100 HDD

1MHz Stepping Frequency Adjustment

Watch Dog Timer

DIE-HARD BIOS wtih External Controller (Upgrade Optional)

CPU Vcore Adjustment for Overclockers through BIOS

Chassis Intrusion Detector

Hardware Monitoring

Wake On LAN

Wake On RTC Timer

Zero Voltage Wake on Modem

PCI Rev 2.2 Compliant

Resetable Fuse Providing Short Circuit Protection for Keyboard and USB Device

AC Power On Auto Recovery

ACPI S3(Suspend to RAM) & S4 (Suspend to Disk) support

Year 2000 Compliant

AOpen Bonus Pack CD (Norton Anti-Virus included)

SpecificationsCPU: Intel Pentium 4 Processor

CPU Table

ASIC: Intel 845 (+ICH2) Chipset

Architecture: 5 PCI slots +1 AGP slot + 1 * CNR

Max. Main Memory: Max. 2GB DDR SDRAM for 168pin DIMM*3

DIMM Type: 64/128/256/512MB/1GB

On Board Sound: Analog Devices AD1885 AC’97 CODEC onboard

BIOS: Award Plug and Play 4Mb Flash ROM BIOS

On Board I/O:

2 Serial Ports (UART 16C550 Support)

1 Parallel Port (SPP/EPP/ECP Support)

2 Channel E-IDE (Mode 4 and Bus master Ultra DMA 33/66/100 Support)

1 Floppy Drive Connector (1.2/1.44/2.88MB)

2 Universal Serial Bus Ports

1 PS/2 Mouse Port

1 PS/2 Keyboard Port

Game/Midi Port ,Speaker-Out ,Line-In , Mic-In

Onboard Connector:

IrDA , Wake-On-LAN , Wake-On-Modem, CPU Fan, Fan2, Fan3 , CD_IN, MODEM_IN , AUX-IN , FRONT AUDIO, Dr. LED, Chassis intrusion connector, Additional 2 USB Ports (via optional cable), GPO

Battery: 3V Lithium Battery

Green Function: Yes

Board Size: 305mm x 244mm, ATX Form Factor
