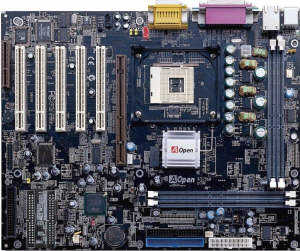

Model: AX4T II

Form Factor: ATX

Memory Slots: RIMM x 4

Chipsets: Intel 850

CPU Bus Clock

Spec: 400

Max: 720

Notes: Intel 10/100 Mbps LAN (optional) / ATA/100 / AC'97 Audio / RDRAM memory

Key FeaturesSupport PC800 and PC600 RDRAM memory

Jumper-less Design

Support 4X AGP Pro mode

Intel® PRO/100 Network Connection( Optional)

AC'97 2.1 Audio support / Audio Codec onboard

Supports 4 USB ports

Support Ultra DMA/100 HDD

Hardware Monitoring

Wake On Modem

Wake On LAN

PCI Rev 2.2 Compliant

Resetable Fuse Providing Short Circuit Protection for Keyboard and USB Device

ACPI S3(Suspend to RAM) & S4 (Suspend to Disk) support

AOpen Bonus Pack CD (Norton Anti-Virus included)

SpecificationsCPU: Intel Pentium 4 Processor

CPU Table

ASIC: Intel 850(+ICH2) Chipset

Architecture: 5 PCI slots +1 AGP Pro slot + 1 * CNR slot

Max. Main Memory: Max. 2GB RDRAM for 184pin RIMM*4

RIMM Type: 64/128/256/512 MB

On Board LAN: ICH2 Integrated MAC+ Intel 82562ET PHY onboard for 10/100Mbps Ethernet (optional)

On Board Sound: Realtek ALC201 AC’97 CODEC onboard

BIOS: Award Plug and Play 4Mb Flash ROM BIOS

On Board I/O:

2 Serial Ports (UART 16C550 Support)

1 Parallel Port (SPP/EPP/ECP Support)

2 Channel E-IDE (Mode 4 and Bus master Ultra DMA 33/66/100 Support)

1 Floppy Drive Connector (1.2/1.44/2.88MB)

2 Universal Serial Bus Ports

1 10/100 Mbps Ethernet Port(optional)

1 PS/2 Mouse Port

1 PS/2 Keyboard Port

Game/Midi Port ,Speaker-Out ,Line-In , Mic-In

Onboard Connector:

IrDA , FRONT_AUDIO , CPU FAN, FAN1, FAN2, CD_IN, MODEM_IN ,

Chassis Intrusion, Additional 2 USB Ports (via optional cable)

Battery: 3V Lithium Battery

Green Function: Yes

Board Size: 305mm x 244mm, ATX Form Factor
