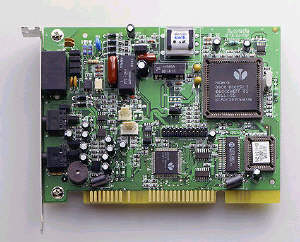

FM56Model: FM56
Solution: Rockwell RCVDL56ACF/SP Hardware modem
Modem/Fax (Kbps): 56K/14.4K
V.90: YES
Caller lD/TAM: YES/YES
PnP: YES
Interface: ISA
Key FeaturesSimultaneous Voice and Data (SVD). Allows User to Talk and
Transmit Data at the Same Time
Operates at 56Kbps Data (Download Speed)
Supports SVD, Telephone Answering Machine (TAM) and Voice Mail Operations
Built-In Caller ID and Distinctive Ring Detection
MNP10 Dynamic Data Rate Fall Back / Forward Mobile Operation
16550/A Compatible Enhanced UART for Sustained DTE Speed of 115,200bps
ITU V.90 Standard Upgradable
Ring Wake-up Function
Sound Card Connector
Plug and Play Support
SpecificationsModem Operation
Line Rate: 0.3,1.2, 2.4, 4.8, 7.2, 9.6, 12, 14.4, 16.8,19.2, 21.6, 24,
26.4, 28.8, 31.2, 33.6, 56Kbp(Download)
DTE Rate: 115,200 bps Maximum
Operation: Half or Full-duplex Over 2-wire Dial-up Line, Asynchronous
Linking: Auto Dial/Answer, Auto Banding, MNP 10 Auto Fall-back / Forward
Flow Control: RTS/CTS, XON/XOFF (Software Selectable)
Compatibility: Bell 103, 212A, ITU-T V.21, V.22A/B, V.23, V.22bis, V.32,
V.32bis, V.34, K56Flex
Error Correction: ITU-T V.42, MNP4 (Auto-match)
Data Compression: ITU-T V.42bis, MNP5 (Auto-match)
Receive Sensitivity: -38 dBm
Command Set: AT Command and Escape Sequence
Memory: 2 Configuration Profiles, 4 Sets of Telephone Numbers
Diagnostics: Power on Self-Test, V.54 Loop Test
Voice Operation
Operation: Analog Simultaneous Voice and Data (ASVD), Telephone Answering
Machine (TAM), Voice Mail System
Sampling Rate: 7.2KHz Using 2, 3 or 4 Bits ADPCM
Voice: 11.025 KHz Linear PCM
Audio Span: ITU-T V.61 Modulation (ASVD)
FDSP: Full-duplex Speakerphone Mode, Acoustic and Line Echo Cancellation,
Microphone Gain/Muting, Speaker Volume Control/Muting
Video Conferencing: H324
ITU-T V.80: V.80 and Rockwell Video Ready Synchronous Access
Modes Support Based Communication Protocols (Software Upgradable)
ITU-T V.70: Supports DSVD Timing Recovery SIG (Special Interest
Group) DigiTalk DSVD (Software Upgradable)
