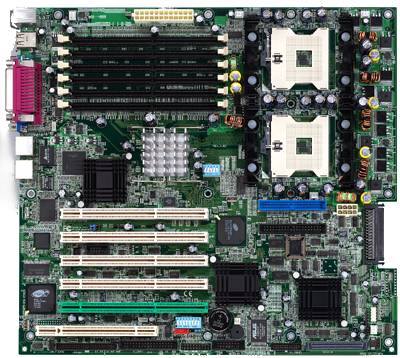

| PR-DLS |
 |
| Processor |
Supports SMP (Symmetrical Multi-Processor) dual
processors
MPS (Multi-Processor Specification) rev 1.4 compliant
Supports dual Intel® Xeon Processor up to 2.4GHz
FSB 400MHz supported |
| Chipset |
ServerWorks® Grand Champion LE North
Bridge (CMIC-LE)
ServerWorks® Champion South Bridge (CSB5)
ServerWorks® 64-bit PCI-X Bridge (CIOB-X2)
Supports PC1600/PC2100 SDRAM (Registered DIMM only)
Supports dual peer to peer PCI buses
Supports 64-bit/66MHz PCI bus & 133MHz PCI-X bus |
| ServerWorksR
Grand Champion LE North Bridge (CMIC-LE) |
6 x 168-pin DIMM sockets. Each DIMM socket supports
128MB to 2GB
PC1600/PC2100 DDR registered DIMM module
Supports ECC-based 128MB to 12GB memory capacity |
| Slots |
1 x PCI-32bit/33MHz 5V slots
5 x PCI-64bit/66MHz 3V slots
PCI-X Slot 4 supports LSIRMegaRAID SCSI 320-0 ZCR card |
| Onboard I/O |
1 x PS/2 keyboard port, 1 x PS/2 mouse port
1 x Floppy port (up to 2.88MB, 3 mode)
2 x ATA-100 IDE connectors
2 x External USB ports (Support Hot-Plug Function)
2 x Onboard USB connectors
1 x External serial port
1 x Parallel port (ECP, EPP port)
2 x RJ-45 LAN port /w LED
1 x 15-pin VGA Port
2 x 68-pin Ultra-160/320 SCSI connectors
2 x Feature connectors (for IPMI solution) |
| Onboard SCSI |
Dual channel Ultra-160/320 SCSI channels
LSIR 53C1010R 64-bit, 66MHz PCI SCSI controller or 53C1030 64-bit PCI-X SCSI
controller |
| Onboard LAN |
On board Intel® 82551 Fast Ethernet
controller x 1 & Intel® 82544 Gigabit
Ethernet controller x1
Intel® 82544 supports 10/100/1000 Mbps transfer rates
Intel® 82551 supports 10/100 Mbps transfer rates |
| Onboard VGA/
no AGP solution |
ATIR RAGE-XL PCI-based VGA controller
8MB display SDRAM |
| Onboard IDE |
Dual channel bus master IDE ports support ATA-100,
Multi-Word
DMA Mode 2, PIO Mode 3/4
ATAPI IDE CD-ROM, CD-R, CD-RW and ZIP LS-120 supported
|
| PC Health
Monitoring |
PC health monitoring chip supports the following:
4 x Fan sensor & control: CPU fan*2, chassis fan*2
Voltage sensor: Vcore0, Vcore1, +3V, +5V, +3Vsb (via BIOS)
Vcore0, Vcore1, Vtt 1.25v, +3v, +5v, +2.5v, +12v, -12v, -5v, 1.5v, +3vsb
(via ASWM)
3x Thermal sensor: Environment x1, CPU x2 (CPU sensor use internal thermal
diode) |
| Front and Back
Panel |
Front panel: 20-pin PANEL, 2-pin HDD LED
Supports power button, reset button, SMI button, speaker, LAN activity LED,
system warning/failure LED, chassis intrusion switch, HDD access LED, NMI
button, power status LED
Back panel: PS/2 keyboard & mouse, USB x2, serial x2, parallel x1, LAN x2,
VGA x1 |
| Onboard
Connector |
3V, 5V, and 12V 24-pin ATX power connector & 12V
8-pin connector
Other connectors: Optional USB connector x2 (Supports USB channel 3,4)
WOL: wake-on-LAN support
WOR: wake-up on ring connector (IntelR standard connector)
CHASSIS: chassis intrusion
Fan: CPU, chassis fan connectors |
| BIOS |
4Mbit Flash memory
AwardR BIOS with ACPI, DMI, Green, PnP features
plus Enhanced Server BIOS features, VGA & SCSI BIOS
Year 2000 test approved |
| Special
Feature |
Throttling mode support
(System will automatically speed down while CPU is overheat) |
| Board Size |
ATX : 30.5cm x 33.0cm (12.0" x 13.0") |
