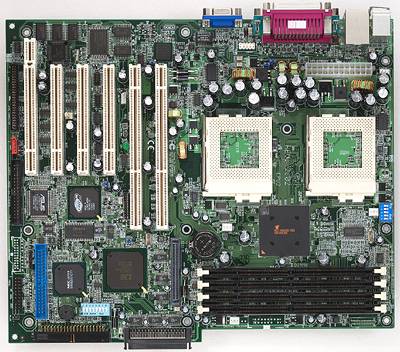

| TR-DLS |
 |
| Processor |
Supports SMP (Symmetrical Multi-Processor) dual
processors
MPS (Multi-Processor Specification) rev 1.4 compliant
Supports Intel® Pentium® III processor with 512K cache
and at 1.53GHz
FSB 133MHz support |
| Chipset |
RCC Champion LE-T North Bridge (LE-T)
RCC Champion South Bridge (CSB5)
Supports PC133 SDRAM (Registered DIMM only)
Supports Dual Peer-to-Peer PCI buses
Supports 64-bit/66MHz PCI Bus
|
| System Memory |
4x 168-pin DIMM sockets support 128MB to 1GB PC-133
registered DIMM module
Supports ECC-based 128MB to 4GB memory capacity |
| Slots |
4 x PCI-32bit/33MHz 5V slots
2 x PCI-64bit/66MHz 3V slots |
| Onboard I/O
Interface |
1 x PS/2 keyboard port, 1 x PS/2 mouse port
1 x Floppy port (up to 2.88MB, 3 mode)
2 x ATA-100 IDE connectors
2 x External USB ports (Support Hot-Plug Function)
2 x Onboard USB connectors
2 x External serial ports
1 x Parallel port (ECP, EPP port)
1 x RJ45 LAN port /w LED
1 x 15-pin VGA Port
2 x 68-pin Ultra160/320 SCSI connectors
2 x Feature connectors (for IPMI solution) |
| Onboard SCSI |
Dual channel Ultra160/320 SCSI channels
LSI® 53C1010R/1030 64-bit/66MHz SCSI controller |
| Onboard LAN |
Dual channel bus master IDE ports support ATA-100,
Multi-Word
DMA Mode 2, PIO Mode 3/4
ATAPI IDE CD-ROM, CD-R, CD-RW and ZIP LS-120 supported |
| PC Health
Monitoring |
PC health monitoring chip supports the following:
4 x Fan sensors & controls: CPU fan*2, chassis fan*2
Voltage sensor: Vcore0, Vcore1, +3V, +5V, +12V, +3Vsb
3 x Thermal sensor: Environment x1, CPU x2
(CPU sensor use internal thermal diode) |
| Front and Back
Panel |
Front panel: 20-pin PANEL, 2-pin HDD LED Supports
power button, reset button, speaker, LAN activity LED, system
warning/failure LED, chassis intrusion switch, HDD access LED, NMI button,
power status LED, front panel LED
Back panel: PS/2 keyboard & mouse, USB x2, serial x1, parallel x1 LAN x2,
VGA x1 |
| Onboard
Connector |
3V, 5V, and 12V 24-pin ATX Power Connector
Other connectors:
Optional USB connector x3 (Supports USB channel 3,4)
WOL: wake-on-LAN support
WOR: wake-up on ring connector (Intel® standard connector)
CHASSIS: chassis intrude
Fan: CPU, chassis connectors
8-pin and 5-pin DIP switches |
| BIOS |
4Mbit Flash memory
Award BIOS with Enhanced Server, ACPI, DMI, Green, PnP Features
Plus, VGA & SCSI BIOS
Year 2000 Test Approved |
| Special
Feature |
System auto speed down while CPU overheat |
| Board Size |
ATX : 30.5cm x 25.4cm (12.0" x 10.0") |
