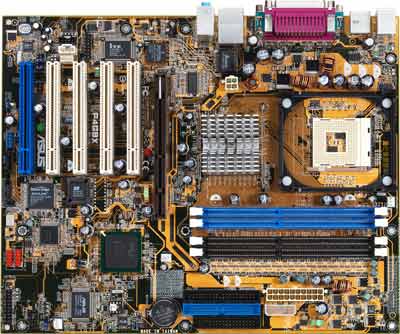

| ASUS P4G8X Deluxe |
 |
|
Processor |
Socket 478 for Intel Pentium 4 / Celeron
up to 3.06GHz+
On-die 512KB/256KB L2 Cache with full speed
Intel Hyper-Threading Technology ready
New power design supports up to 3.06GHz CPU speeds and above |
|
Chipset |
Intel E7205 Memory Controller Hub
Intel 82801DB ICH4 |
|
Front Side Bus |
533 / 400 MHz |
|
Memory |
Dual channel memory architecture
4 x 184-pin DIMM Sockets support max. 4GB PC2100/PC1600 ECC/non-ECC DDR
SDRAM memory |
|
Expansion Slots |
1 x AGP Pro/8X (1.5V only)
5 x PCI |
|
IDE |
2 x UltraDMA 100 / 66 / 33 |
|
Serial ATA (optional) |
Silicon Image 3112A controller supports
two Serial ATA ports |
|
RAID (optional) |
RAID 0 or RAID 1 support by two Serial
ATA connectors |
|
Audio (optional) |
Realtek ALC650 6-channel CODEC |
|
LAN (optional) |
BROADCOM 1000 Mbps Ethernet Controller |
|
1394 (optional) |
TI TSB43AB22 controller
2 x 1394 port |
|
Special Features |
Power Loss Restart
ASUS JumperFree
CrashFree BIOS
ASUS MyLogo2
Support S/PDIF in/out interface (on audio model only)
ASUS Post Reporter
ASUS EZ Plug
ASUS Q-Fan technology
ASUS EZ Flash
Multi-language BIOS
AGP warning LED |
|
Overclock Features |
CPU and AGP voltage adjustable
ASUS JumperFree
C.P.R. (CPU Parameter Recall)
SFS (Stepless Frequency Selection) from 100MHz up to 400MHz at 1MHz
increments
Fixed AGP/PCI frequencies |
|
Back Panel I/O Ports |
1 x Parallel
2 x Serial
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Audio I/O
4 x USB 2.0 / 1.1
1 x RJ45 port (optional) |
|
Internal I/O Connectors |
1 x USB 2.0 connector support additional
2 USB 2.0 ports
CPU / Power / Chassis FAN connectors
20 pin ATX Power connector
4 pin ATX 12V Power connector
IDE LED connector, power LED connetor
Chassis Intrusion
S/PDIF in/out connector (optional)
CD / AUX / Modem audio in (optional)
Front Audio Panel connector (optional)
GAME/MIDI connector (optional)
2 x IEEE1394 port (on 1394 model only) |
|
BIOS |
4Mb Flash ROM, AwardR BIOS, TCAV, PnP,
DMI2.0, WfM2.0, SM BIOS 2.3, Multi-language BIOS, ASUS EZ Flash, ASUS
MyLogo2, CrashFree BIOS, C.P.R |
|
Industrial Standard |
PCI 2.2, USB 2.0 |
|
Manageability |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME,
Chassis Intrusion, SM Bus |
|
Support CD |
Drivers
ASUS PC Probe
Trend Micro PC-cillin 2002 anti-virus software
ASUS LiveUpdate Utility |
|
Accessories |
User's manual
UltraDMA cable
IDE cable
FDD cable
2-port USB 2.0 / Game port module
S/PDIF in/out module (optional)
I/O shield
2 x Serial ATA cable (on Serial ATA model only)
2 port IEEE1394 module (on 1394 model only)
InterVideo WinCinema (Gold version only) |
|
Form Factor |
ATX Form Factor 12" x 9.6" (30.5cm x
24.5cm) |
