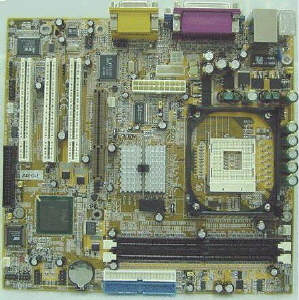

Core Chipset

 Intel RG82845G (GMCH) + FW82801DB (ICH4)

I/O Chipset

iTE IT8712F

Processor

Pentium 4 (Willamette / Northwood) and Celeron (socket 478) PSB 533/400 MHz(133/100 MHz QDR)

CPU Voltage

Switching Voltage Regulator on board, supports +1.10V DC to +1.85V DC CPU Core Voltage

Memory

One channel DDR200/266 unbuffered DDR SDRAM, 64b wide (w/o ECC), 2 Double-sided DIMMs (4 rows), maximum memory capacity is 2GByte, supports 64Mb, 128Mb, 256Mb and 512Mb technologies for x8 and x16 devices. (Double-sided x16 is not supported)

BIOS

2Mb FLASH ROM (FWH)

Expansion Slots

AGP (1x / 2x / 4x , 1.5V only) x 1, PCI x 3

USB Ports

USB 2.0 x 6 (2 ports via I/O panel, 4 ports via Ribbon cable)

Audio

AC97 sound effects (2 channels,AC97 CODEC onboard)

On-Chip VGA

2D/3D Graphic,maximum 3D resolution supported 1600x1200x32@85Hz

Connectors

IDE x 2(supports ATA 33/66/100)

One floppy drive interface (supports up to two 2.88 MB floppy drives)

One 20-pin ATX power supply connector

One 4-pin (2x2) 12V ATX power supply connector

One 4-pin (1x4)ATX auxiliary power supply connector

CPU fan,power supply fan and chasis fan connectors

One IR connector (optional)

One S/PDIF connector(optional)

One CD audio in Connector

AUX-IN Connector

One front audio connector

One SCR (Smart Card Reader) connector (optional)

one WOL(Wake-On-LAN) connector

Dimension

 244mm x 230 mm (Micro-ATX Form-Factor)

Software Compatibility

 MS-DOS, Windows NT, OS/2,NOVELL, Windows 95, Windows 98, LINUX.... etc. fully tested
