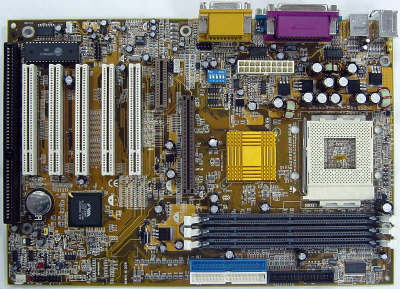

| KT3-AD/AS/AV |
 |
| Chipset Vendor: |
VIA |
| Chipset Name: |
Apollo |
| Chipset Family: |
KT133A |
| Chipset Northbridge: |
8363A |
| Chipset Southbridge: |
82C686B |
| CPU Type: |
AMD Duron ; AMD Athlon |
| Socket / Slot Type: |
Socket A |
| Memory Technology : |
SDRAM |
| Form Factor: |
ATX |
| Special: |
AZZA-UP Ready ; Front Audio ; Front USB ; AD/AS models:
AZZA-Tune ; AD only: AZZA-Alarm |
| PCI Slots: |
5 |
| ISA Slots: |
1
|
| AMR Slots: |
1
|
| CNR Slots: |
None
|
| USB Ports: |
4 |
| USB Location: |
bracket+backside
|
| AZZA Up Ready: |
AZZA-UP Ready
|
| Audio Channels: |
2 |
| Audio Location: |
backside
|
| Audio AZZA Up Ready: |
AZZA-UP Ready
|
| VGA AGP: |
AGP 4x
|
| VGA Type: |
slot |
| Status: |
New |
Specifications:
Model differences
| Feature |
KT3-AD |
KT3-AS |
KT3-AV |
| AZZA-UP
Front audio and Front USB |
•
|
• |
• |
| AZZA-Alarm
voice warning |
•
|
|
|
| AZZA-Tune
, Adjustable CPU Vcore and ratio |
•
|
• |
|
| Form-factor |
ATX |
| Dimensions |
305 x 210 mm |
| Processor |
Socket A for AMD
Athlon and Duron processors |
| FSB |
200 MHz and 266
MHz |
| Chipset |
VIA
VT8363A(KT133A) + VT82C686B |
| I/O chipset |
VT82C686B |
| System Memory |
168-pin 3.3V
SDRAM DIMM x 3.
(Support SDRAM VCM PC100, PC133)
The maximum memory supported by these boards is 1.5 GB |
| Slots |
x1 AGP 4 ,
x5 PCI ,
x1 AMR,
x1 ISA |
| Onboard Audio |
AC'97 2 channel
sound, codec VT1611A |
| BIOS |
2Mb Flash ROM,
Award BIOS support PnP and DMI |
| USB port |
x 4 (Ver:1.1) (2
ports on-board, 2 ports use header) |
| IDE |
x 2 support
ATA33/66/100 |
| Special |
Support AZZA-UP
Front USB and Front Audio |
| Connectors |
CD-IN connector x
2,
FAN connector x 2,
PS/2 K/B,
PS/2 Mouse,
COM1/2,
LPT,
Game,
FDC,
System Panel and LEDs |
| Others |
WOL(Wake On LAN),
Hardware Monitoring |
|
