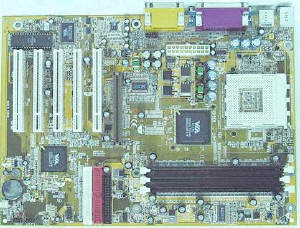

| KT33-BV |
 |
| Form-factor |
ATX |
| Dimensions |
305 x 220 mm |
| Processor |
Socket A for AMD
Athlon XP, AMD Athlon and AMD Duron processors |
| FSB |
200 MHz and 266 MHz |
| Chipset |
VIA KT333 + VT8233A |
| I/O chipset |
Winbond W83697HF
|
| System Memory |
184-pin 2.5V DDR
DIMM x 3.
(Support PC1600 ,PC2100 and PC2700 DDR DIMM modules)
The maximum memory supported by these boards is 3 GB |
| Slots |
x1 AGP 4 ,
x5 PCI |
| Onboard Audio |
Supports Microsoft
DirectSound 3D and AC97 Full Duplex |
| BIOS |
2Mb Flash ROM,
Award BIOS support ACPI,PnP and DMI |
| USB port |
x 4 (Ver:1.1) (2
ports on-board, 2 ports use header) |
| IDE |
x 2 (support ATA
33/66/100/133) |
| Special |
Support Front
USB,Front Audio |
| Connectors |
CD-IN connector x
1,
AUX-IN x 1,
FAN connector x 2,
PS/2 K/B,
PS/2 Mouse,
COM1/2,
LPT,
Game,
FDC,
System Panel and LEDs |
| Others |
WOL(Wake On LAN),
Hardware monitoring |
|
