Designed for the Performance Gaming and Business PC .

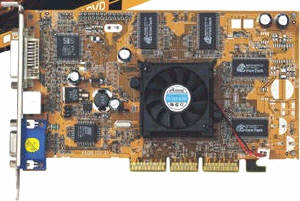

Model: XP200-B1

Powered by AGP 8x Xabre 200 128-bit DDR graphics processing unit (GPU)

Xabre 200 display engine supports CRT(VGA)features with up to 2048x1536 resolution.

Supports DirectX 8.1 and OpenGL applications.

Hardware Enhanced Motion Compensation for full screen video playback of all DVD/HDTV resolutions.

On-board 64MB high speed DDR memory for performance gaming.

Programmable 24-bit true-color RAMDAC up to 375 MHz pixel clock.

Supports 3D resolutions (32-bit color) up to 2048x1536.

AGP universal bus (for AGP 2X/4X/8X systems).

High Performance & High Quality 3D Accelerator

Support DirectX 8.1 Pixel Shader ver. 1.3.

Support Bump Mapping, Cubic Mapping and Volume Texture.

Supports 2X/4X full scene anti-aliasing.

Built-in high performance VLIW T&L engine

. Support OpenGL two side lighting

. Support OpenGL primary and secondary color merging .

High Performance 2D Accelerator

Built-in hardware command queue.

Built-in Direct Draw Accelerator.

Built-in GDI 2000 Accelerator.

64MB frame buffer with linear addressing.

Supports AGP8x bus up to 533 MHz data read for all 2D engine functions

MotionFixing? Video Processor

Supports 4 fields per-pixel motion detection de-interlace function, video sources from MPEG decoder, Video capture and AVI interfaces.

Supports down scaling function and scaling vector as 1/2, 1/4.

Supports de-interlaced and 1/2 down scaling function

MPEG 2/1 Video decoder

Motion Compensation layer decoding architecture.

Supports up to 20 M bit/sec bit rate decoding

Supports VCD, DVD and HDTV decoding

Xminator? XP Unified driver

Optimizes both Direct X 8.1 and OpenGL 1.3 for Windows XP /Windows 9X/Windows 2000

System requirements

Intel Pentium 4/III/II, Celeron, AMD K6/Athlon or compatible with AGP 2X or AGP 2X/4X/8X universal slot.

Installation software requires CD-ROM drive.

DVD playback requires DVD drive on PCs with an Intel Pentium II processor (or equivalent) and 64MB of system memory.

Operating systems support

Windows 98SE

Windows Me

Windows 2000

Windows XP

Monitor support

CRT Monitor: 15 pin VGA connector

Display support

Register compatible with VGA

BIOS compatible with VESA for super VGA

DDC1/2b/2b+ monitor support

VESA Display Power Management Support

Separate horizontal and vertical synchronization at TTL levels.

All other brand names are trademark or registered trademarks and are the property of their respective owners, All specifications or original picture may change without notice and should check at the place of purchase.
