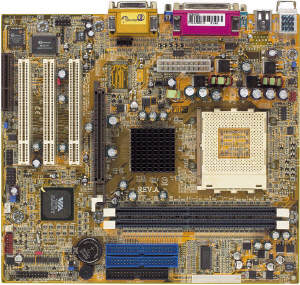

AZ30-EC

Chipset

VIA KM266 - 8375/8233ACD

CPU Socket

Socket A

CPU Supported

AMD Athlon XP 266 MHz FSB (1500+ to 2000+)

AMD Athlon 200/266 MHz FSB (up to 1.4GHz)

AMD Duron 200 MHz FSB (500MHz to 1.3GHz)

and future processors

Memory

2 DDR SDRAM DIMM Sockets

max. 3 GB memory

Supports PC2100(DDR266)/ PC1600(DDR200) DDR SDRAM

PCI IDE

Dual PIO mode 3/4/5/6 EIDE channels up to 4 IDE devices

UltraDMA/ 133 transfer rate up to 133 MB/s

Super I/O

2 x NS16C550A-compatible UARTs

1 x SPP/ECP/EPP parallel port

Rear Panel I/O Ports

2 x USB, 1 x DB-9, 1 x DB-15, 1 x DB-25, 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 1x Game/MIDI, 3 x audio jacks

Internal I/O Connectors

1 x connector for 2 additional external USB, 1 x external serial port, 1 x internal audio, 1 x S/PDIF-out, 1 x IrDA, 2 x IDE, 1x Floppy, 1 x ATX power, 3 x fan, 1 x WOR, 1 x WOL

Power Management

ACPI and OS Directed Power Management

Wake-on-Events : RTC/ Modem/ LAN

Hardware Monitor

System, processor temperature, voltage and fan speed

Expansion Slots

1 x AGP slot supports 4x / 2x AGP

3 PCI slots

1 CNR slot

Audio On Board

AC`97 Audio codec

Other features

Integrated ProSavage 8 2D/3D/ Video accelerator



Other features

Suspend to RAM

BIOS

Award/ 2Mbit

Form Factors

microATX, 4 layers

24.4 cm x 22 cm

9.6 inch. x 8.66 inch
