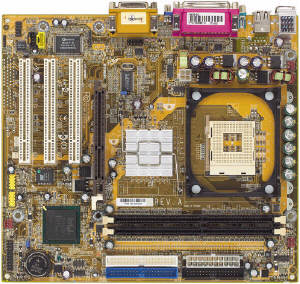

NB35-BC

Chipset

Intel 845G chipset

- Intel 845G Graphics Memory Controller Hub (GMCH)

- Intel 82801DB I/O Controller Hub (ICH4)

CPU Socket

Socket 478

CPU Supported

Intel Pentium 4 processor (478-pin)

- 533MHz system data bus - supports up to 2.53 GHz CPU speed

- 400MHz system data bus - supports up to 2.4 GHz CPU speed

Intel Celeron processor

- 400MHz system data bus - supports up to 1.7 GHz CPU speed

Memory

Two 184-pin DDR SDRAM DIMM sockets

2.5V unbuffered PC1600 (DDR200) or PC2100 (DDR266) DDR SDRAM DIMM

Supports maximum of 2GB system memory using 64Mbit, 128Mbit, 256Mbit or 512Mbit technology

Double-sided x16 DDR SDRAM DIMM is not supported

PCI IDE

Supports ATA/33, ATA/66 and ATA/100 hard drives

PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)

Rear Panel I/O Ports

2 USB 2.0/1.1 ports

1 DB-9 serial port

1 DB-15 VGA port

1 DB-25 parallel port

1 PS/2 mouse port

1 PS/2 keyboard port

1 game/MIDI port

3 audio jacks: line-out, line-in and mic-in

I/O Connectors

2 connectors for 4 additional external USB 2.0/1.1 ports

1 connector for 1 external serial port

2 internal audio connectors (CD-in and TAD)

1 S/PDIF-out connector

1 connector for IrDA interface

2 IDE connectors

1 floppy connector

2 ATX power supply connectors

1 Wake-On-LAN connector

1 Wake-On-Ring connector

3 connectors for CPU fan, chassis fan and second fan

Power Management

ACPI and OS Directed Power Management

Wake-On-Events include:

Wake-On-USB Keyboard

Wake-On-Ring

Wake-On-LAN

Wake-On-Keyboard

Expansion Slots

1 AGP/ADD slot

3 PCI slots

Audio Onboard

18-bit stereo full-duplex codec with independent variable sampling rate

High quality differential CD input

True stereo line level outputs

S/PDIF-out interface

2-channel audio output

Other features

Onboard graphics and Suspend to RAM

BIOS

Award BIOS

Form Factors

microATX, 4 layers

24.5cm (9.65") x 22cm (8.66")
