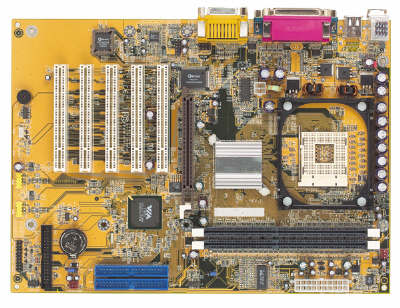

PE11-TC

PROCESSOR

Intel Pentium 4 processor

- 533MHz system data bus

- 400MHz system data bus

Intel Celeron processor

- 400MHz system data bus

PROCESSOR SOCKET

Socket 478

CHIPSET

VIA P4X266E/VT8235

SYSTEM MEMORY

Two DDR DIMM sockets

Maximum 2GB using PC1600 (DDR200) or PC2100 (DDR266) unbuffered DDR SDRAM DIMM

BIOS

Award BIOS

Windows 98/2000/ME/XP Plug and Play compatible

2Mbit flash memory

POWER MANAGEMENT

ACPI and OS Directed Power Management

Wake-On-Events include:

- Wake-On-PS/2 Keyboard/Mouse

- Wake-On-USB Keyboard/Mouse

- Wake-On-Ring

- Wake-On-LAN

- RTC timer to power-on the system

ONBOARD AUDIO FEATURES

AC97 compliant

PCI IDE INTERFACE

ATA/33, ATA/66, ATA/100 and ATA/133 hard drives

ACCELERATED GRAPHICS PORT

AGP 4x/2x

REAR PANEL I/O PORTS

2 USB 2.0/1.1 ports

2 DB-9 serial ports

1 DB-25 parallel port

1 mini-DIN-6 PS/2 mouse port

1 mini-DIN-6 PS/2 keyboard port

1 game/MIDI port

3 audio jacks: line-out, line-in and mic-in

I/O CONNECTORS

2 connectors for 4 additional external USB 2.0/1.1 ports

1 connector for external line-out and mic-in jacks

2 internal audio connectors (AUX-in and CD-in)

1 connector for IrDA interface

2 IDE connectors

1 floppy connector

2 ATX power supply connectors

1 Wake-On-LAN connector

CPU fan and chassis fan connectors

EXPANSION SLOTS

1 AGP 4x slot

5 PCI slots

PCB

4 layers, ATX form factor

30.5cm (12") x 22cm (8.66")
