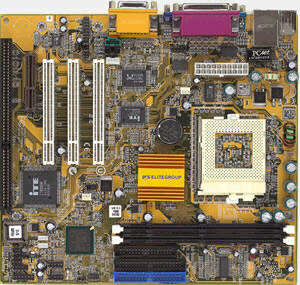

P6IWM

PROCESSORS

Socket 370 supports the

Intel® Celeron™ FC-PGA series processors

FC-PGA Pentium® III / FC-PGA2 Pentium® III (Tualatin) seties processors

CHIPSET

Intel® 82810E & 82801BA -- Graphics Memory Controller Hub (GMCH), I/O Controller Hub 2 (ICH2) &

Firmware Hub (FWH) with following features:

Integrated graphics controller

ITE LPC I/O - ITE8712F

AC97 Audio Codec

Compliant with AC97 2.2 specification

LAN: RealTek 8100/B (optional)

SYSTEM BIOS

Award 2Mb Flash EEPROM

Supports Plug and Play 1.0A, AMP 1.2, Multi Boot, DMI

Support for ACPI revision 1.0 specification

MEMORY

Two 168-pin DIMM sockets for 3.3V SDRAM (Ready for PC133/PC100)

Maximum: 512MB

I/O INTERFACE

Supports Plug and Play function

PS/2 keyboard and PS/2 mouse connectors

Dual USB Ports and an optional LAN connector

One - EPP/ECP mode parallel port

One - 16550 high-speed serial I/O ports

One VGA Port

Audio Ports (Line-in, Line-out, Mic-in, CD-in and game port)

Supports 360K~2.88M Byte, 3 Mode FDDs or LS120

Dual PCI IDE interfaces - support four IDE devices (PIO mode 4, DMA Mode 2, Ultra DMA 33/66/100)

ATX Power Supply Connector

Ports, headers and others:

IrDA Cable header

COM Port header

Two CD-In headers

Two Extra USB ports (USB1 or USB2)

Chassis open detector header

Green, HDD, Power indicator LED headers

CPU and Case Fan headers

LAN Card Wake Up / Internal Modem Ring Wake-Up Headers

RTC & BATTERY

Intel® I/O Controller Hub 2 (ICH2) included 256 bytes of CMOS SRAM

With CMOS hardware clear jumper

EXPANSION SLOTS

3 PCI Slots, 1 CNR Slot, 1 ISA Slot (optional)

FORM FACTOR & LAYERS

microATX (244mm x 222mm), 4 Layers
