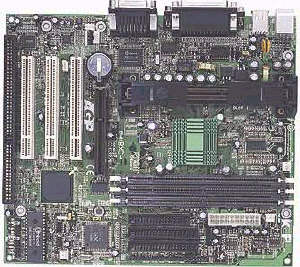

| EP-61BXC-A
Supports Slot 1
Processors.
Intel Pentium II, Pentium III, & Celeron.
Intel 440BX AGPset.
Winbond Super Multi I/O
Controller.
1 Floppy drive controller,
1 Parallel port (EPP, ECP),
2 Serial ports.
USB.
2 supported onboard.
Award PnP BIOS. Flash
upgradeable.
120MB ATAPI floppy drive and ZIP support!
Standard ATX form factor.
245mm x 210mm.
UltraDMA-33 EIDE
Controllers. (Up to 4 IDE devices).
Backwards compatible with PIO mode 3/4
66/100MHz Front Side
Bus.
3x DIMM Slots for SDRAM.
768MB max. supported.
PS/2 connectors.
1 PS/2 mouse,
1 PS/2 keyboard..
3 (32-bit) PCI, 1 ISA,
& 1 AGP.
AGP supports 1x and 2x modes.
Onchip audio.
Yamaha 16-bit PCI sound
Extended Functions for
Greater Value!
Keyboard Power On (KBPO) - use
keyboard to power on system.
Easy Setting Dual Jumper (ESDJ) - dual jumper F.S.B. & multiplier selection.
Unified System Diagnostic Manager (USDM) - monitor in Windows system
temperatures, voltages, etc.
Hardware monitoring functions provided by LM75/78.
Hardware sleep/resume.
The EP-61BXC-A is based on the
Intel 440BX chipset, an AGPset offering a 100MHz Bus Clock, supporting a
single Slot-1 Pentium II or Pentium III. The AGP Slot is compatible with any
AGP compliant adapter providing an immediate doubling (or quadruple) in the
maximum available 2D/3D Graphics Bandwidth without reducing performance of
other PCI cards. AGP Technology also allows Virtual Reality applications to
use as much texture buffer space as they need without expensive card or
hardware upgrades.
The on-board design of Yamaha (PCI based
chipset), a leading sound chip, creates tremendous 3D enhanced sound effects
for your system. The built-in specifications of OPL3 and MPU401 make you
compatible with the most popular FM-synthesizer and MIDI/JOYSTICK ports.
Together with the compatibility of DOS/Windows Sound Blaster games, it will
let you really enjoy the fun and entertainment from your applications.
The bundled feature USDM, another exclusive
innovation from EPoX and supported by the EP-61BXC-A,
provides you the important real-time information to monitor and control your
system for safer and more stable computing in mission-critical Enterprise,
Internet and Commerce applications.
|
