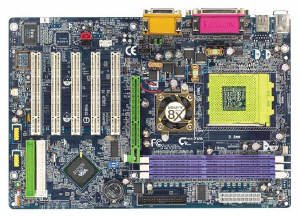

VIA KT400+8235 chipset

PROCESSOR

Socket A for AMD Athlon™ XP / Athlon™ / Duron™ processor

CHIPSET

Northbridge : VIA KT400

Southbridge : VIA 8235

VIA 8X V-Link architecture (533MB/s)

Super I/O : ITE IT8705F

AC97 Realtek ALC650 6-channel sound Chip

MEMORY

Type : DDR400(PC3200) / DDR333 (PC2700) / DDR266 (PC2100) / DDR200 (PC1600) -184pin

Max capacity : Up to 3GB by 3 DIMM slots

CONNECTOR

1 x AGP universal slot (8X/4X/2X-AGP 2.0 compliant)

5 x PCI slots (PCI 2.2 compliant)

1 x FDD port

2 x UDMA ATA133/100/66 Bus Master IDE ports

2 x 2ports USB 2.0 connector (by front USB ports)

1 x 2ports USB 2.0 connector (by cable with rear USB bracket)

2 x cooling fan pin header

REAR PANEL

PS/2 Keyboard / Mouse

2 x USB 2.0 ports

2 x COM ports

1 x RJ45 LAN port

Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector

1 x joystick

CPU SETTING

CPU FSB adjustable via BIOS (1MHz-linear)

CPU Vcore Voltage adjustable via BIOS

AGP Voltage : N/A

Memory Voltage : N/A

BUNDLE SOFTWARE

@BIOS™, Q-Flash™, GMC™

Symantec Norton AntiVirus (Internet Security 2002) OEM Ver.

Symantec Norton Personal Firewall OEM Ver.

H/W MONITORING

System health status auto-detect and report by BIOS

H/W detect and report power-in voltage, CPU voltage, and Fan Speed Support auto detect temperature thermal shutdown function

POWER

ATX power connector

Power-off by Windows 95/ 98/ Me/ 2000/ NT/ XP shut down and Switch

BIOS

2Mbit flash RAM

AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions

IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable

AC recovery ON/OFF control

FORM FACTOR

ATX, Dimension : ( 20.0 x 29.5 cm )

OTHER FEATURES

Suspend-To-RAM (STR)

Supports USB KB/MS Wake up from S3

Poly fuse for keyboard over-current protection

DRIVER

VIA 4 in 1 service pack utility

Realtek sound driver

VIA USB 2.0 driver

Winbond Smart IO driver

Free software
