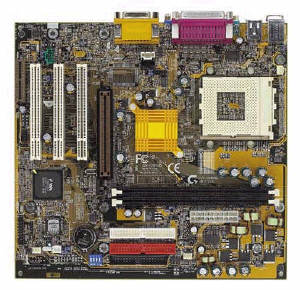

VIA KM133A AGPset

PROCESSOR

Socket A for AMD Athlon™/ Duron™ 200/266 MHz FSB processors

95/100/103/105/110/115/133 MHz FSB

Auto-detects CPU voltage

CHIPSET

VIA VT8365A (KM133A)

VIA VT82C686B

Chipset with build in S3 savage 4 graphics core

AC97 codec

MEMORY

2 168-pin DIMM sockets

Supports PC100 / PC133 SDRAM and VCM SDRAM

Supports up to 1GB SDRAM

Supports only 3.3V SDRAM DIMM

SLOT

1 x AGP slot support 4X mode

3 x PCI slot supports 33MHz & PCI 2.2 compliant

1 x CNR slot (reverse)

I/O

2 x UDMA ATA 100/66/33 bus master IDE ports on board

1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board

1 x VGA (DB15), 1 x joystick, 1 x line-in, 1 x line-out and 1 x MIC on board

2 x USB ports on board, 2 x USB ports by cable (optional accessary)

IrDA TX / RX header ready

POWER

ATX power connector

Power-on by LAN, RTC, Modem & Switch

Power-off by Windows® 95/98/2000/Me shut down & Switch

FORM FACTOR

Micro ATX form factor, 4 layers PCB ( 24.4*23.0 cm)

H/W MONITORING

System voltage detect (Vcore, VDD, Vcc,+12V)

H/W detect & report Power-in voltage, CPU voltage and CMOS battery status

CPU/System fan revolution & temperature detect

BIOS

2Mbit Flash RAM

AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/WinMe compliance, Green, PnP, DMI, INT13 (>8.4GB) &Anti-Virus functions

IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable

AC recovery ON/OFF control

Supports @BIOS™ Live Update utility

Auto-detect & report system health status

OTHER FEATURES

Suspend-To-RAM (STR)

Supports Wake-On-LAN (WOL) & internal/external Modem Ring on

Supports USB K/B or mouse wake up

Includes 3 fan power connectors

DRIVER

Gigabyte Windows Utility Manager

VIA 4 in 1 service pack utility

Creative PCI sound driver

S3 Savage4 graphic accelerator driver

*There speed settings are not guaranteed by GIGABYTE.
