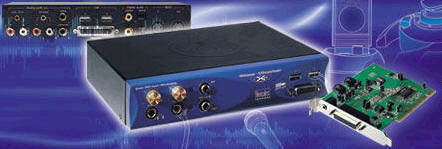

Game Theater XP 7.1 |
 |
|
界面 |
PCI 2.1 界面 |
|
音效芯片 |
Crystal CS4624 |
|
音效转换 |
18-bit ADC/20-bit DAC
最高至 48kHz |
|
PCI Card Connectors |
?DB44 connector to rack
?Aux Line-In jack
?CD-In & 2 Aux-In. |
|
前置连接 |
- Headphone/7th & 8th channel output jack with
volume control
- Line-In /Mic-In toggle jack with microphone gain control
- RCA Line-In jacks (left and right)
- Game port & 2 USB ports |
|
后置连接 |
- Main stereo Line-Out jack
- Surround stereo Line-Out jack
- 6 gold-plated Line-Out RCA connectors:
(Main Left and Right/Surround Left and Right/Center/Subwoofer)
- 2 additional USB ports
- DB44 connector to PCI card
- Digital S/PDIF Input & Output (Coaxial & Optical)
- MIDI-In/MIDI-Out DIN connectors (MPU-401 compatible) |
|
盒呎吋 |
4.3 x 21.6 x 15.5cm (1/2 U) (H: 1.7 W: 8.5 D: 6.1 吋)
电线: 2m (78.74 吋) |
|
游戏兼容 |
- Sensaura based 3D positional audio with support for
Microsoft DirectSound? 3D, EAX? 1.0, EAX? 2.0, A3D? 1.0, I3DL2?, MacroFX?,
MultiDrive?, ZoomFX?, EnvironmentFX?
- Sound Blaster? |
|
音效播放 |
· DSP accelerated engine for an unlimited number of
voices (64-voice hardware)
· 8MB General MIDI/GS? sample set
· DLS 1.0 compatible
· GM? (General Midi) and Yamaha XG? compatible
· Yamaha S-YXG50:
- 676 instrument sounds and 21 drum kits
- Effects: reverb, chorus, variation … |
系统要求
|
- Pentium?4/III/II/Celeron?AMD?K6/Athlon?or compatible with AGP 2X or AGP
2X/4X universal slot,
- 64MB RAM
- 10MB hard disk space (more to install games)
- CD-ROM or DVD-ROM drive
- Win ME,Win XP,Win 98SE, |
|
