Specifications

处理器

Supports Socket A for AMD? AthlonTM and DuronTM Processors

Supports Athlon Processors from 700 MHz to 1.6 GHz and Higher

Supports Duron Processors from 600 MHz to 950 MHz and Higher

Supports Adjustable Vcore & VIO Function

3-Phase Power Solution

Provides 46A Power for Future high Frequency Athlon Processor

芯片组

VIA? ApolloTM KT133A chipset

VIA? VT82C686B Chipset

ATA/100 IDE RAID Chip (KK266Plus-R)

C-media? CMI8378 MX Sound Chip(6 channel / SPDIF)

系统频率

Supports DDR266/200 MHz FSB

MicroSteppingTM IWILL CPU frequency setting

Bye-Bye JumperTM IWILL Smart Setting

系统内存

3 x DIMM sockets up to 1.5GB

Supports PC-133 / PC-100 SDRAM / Supports VCM memory types

Supports 64/ 128/ 256/ 512MB SDRAM moduls

Supports 3.3V unbuffered / registered DIMMs

音效芯片

内建 6 声道硬件环绕音效

C-Media? CMI-8738 3D Hardware Sound

32-voice HRTF-base 3D positional audio

支援 Microsoft? DirectSoundTM

支持SPDIF 输入/输出 (Iwill? SuperAudio)(选购)

内建IDE

Dual Ultra DMA 100/66/33 IDE ports

Supports ATAPI IDE CD-ROM, ZIP-100 & LS-120

输出/入接口

1 x SMBus Header

1 x FDD

1 x Parallel Port

1 x PS/2 Mouse (Supports Auto Swapping)

1 x PS/2 Keyboard (Supports Auto Swapping)

1 x Internal IR Connector

1 x Game/MIDI Connector

1 x Chassis Intrusion Header

2 x Serial Ports

4 x USB Ports (2 x internal)

扩充槽

1 x AGP Slot supports AGP 4X/2X模式

6 x PCI 2.2 Bus Master Slot

4 x ATA/100 UDMA IDE 插槽(KK266Plus-R)

2 x on Board IDE RAID

1 x ISA 插槽

BIOS

2 MB EEPROM 闪存

"Bye-Bye Jumper" IWILL Smart Setting

PC99 相容

Plug and Play (随插即用)

支援 APM 1.2

支援 DMI 2.1

支援 ACPI 1.0

Year2000 认证

电源管理

网络唤醒Wake on LAN(WOL)

魔电唤醒Wake on Modem

RTC Alarm

Windows?2000/98/95 power off

包装明细

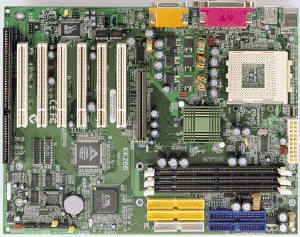

1 块艾崴 KK266Plus-R主机板

1 本使用手册

1 片艾崴Power Installer 光盘

1 条 ATA/66 IDE 排线

1 条 磁盘驱动器排线

1 片 6声道音效转接卡(含排线)
