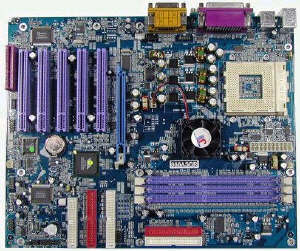

866AS/866AS-R

FEATURES [SPECIFICATION]

Support Socket-A for AMD Athlon /Duron TM uni-proccessor at 266MHz Front Side Bus with double data rate

VIA Apollo KT266(VT8366) System controller and VT8233 High Bandwidth Vlink Client South Bridge

Support ATA 100

Extend AGP Slot Support 4X AGP

Support 184-pin DDR Module

On-Board PROMISE RAID controller (866AS-R)

PC'99 Ready & PC'99 Colorful I/O Ports Design

Support USB Controller & PS/2 Mouse , Standard IR (infrared) Function

Provide extra " three-wire" fans connectors

JumperLess

Frequency Magic Setting

PC Health Monitoring On Post Screen

Magic Install

3-Phase Vcore Voltage to increase system stability

CPU overheat shut down protect function

CPU Vcore Voltage minor adjustment

CPU ratio adjust by jumper setting

DRAM Voltage ,System 3.3V,AGP 3.3V/1.5V Voltage Minor adjustable in bios

BIOS Write Protect function to avoid Virus crash data

SDRAM Asynchronous choice for PC133 DIMM (133MHz) when system clock is 100MHz to increase system performance

BIOS Auto Detect CPU voltage

Y2K Compliant

ACPI Supporting For OS Directed Power Management

Modem Ring remote wake up

RTC alarm wake up

Wake on LAN For OS

Support software suspend & power off

Support Power Button Ride (Instant off or Delay 4 second power off)

STR (Suspend To RAM) support

　
SPECIFICATION
Processor
  • Support Socket-A for AMD Athlon /Duron TM uni-proccessor at 266MHz Front Side Bus with double data rate
Chipset
  • VIA Apollo KT266(VT8366) System controller and VT8233 High Bandwidth Vlink Client South Bridge
CPU Bus Frequency
  • CPU Bus Frequency , Choose One Step Add 1MHz From 100MHz Up to 200MHz in BIOS Setup (Frequency Magic Setting)
Jumpless
  • Support Jumpless Function by BIOS SETUP Let Users More Easier to Change The Frequency
Expansion Slot
  • Five 32-bit PCI Bus Master slots
  • One CNÐÀR Slot
System Memory
  • 3 x 184-pin DDR Module Sockets Support Max 3GB, 2.5V ECC PC2100/PC1600 DDR SDRAM
On Board IDE
  • Support 2 X IDE Connectors for up to 4 IDE Drives
  • Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing for up to 16M Bytes/s
  • Support UTRA DMA-100 Bus Master IDE, Provide faster transfer rate up to 100M Bytes/s
  • Support LS-120 / ZIP Device
AGP SLOT
  • Support 4X AGP VGA Mode for 266MHz of AD and SBA signaling
  • Pipelined split transaction long-burst transfers up to 1GB/sec
On Board 3D Audio
  • Software Audio Controller With On Board CODEC Complete to AC97'
  • Support 3D Surround
  • Support 3D Positioning
  • Full Duplex Operation For Simultaneous Record And Playback
  • Sound Driver for Windows 95 , Windows98 & Windows NT4.0 , Media Rack
PROMISE IDE RAID (866AS-R)
  • Extra 2 channel IDE Interface Support ATA100,RAID0 (to increase transfer rate) or RAID1 (data protection)
On Board Ultra I/O
  • 2 X Serial Ports (16550 Fast UART Compatible)
  • 1 X Parallel Port (EPP and ECP capabilities)
  • 1 X Floppy Disk Connector (Supports 2 Floppy Drivers)
  • 1 X PS2 Mouse Connector
  • 1 X Keybord Cnnector
  • 2 X Three Wire FAN Connector (Include CPU FAN)
  • 1 X LINE IN / LINE OUT / Microphone Connector
  • 1 X Game Port Connector (Support Two Joysticks)
  • 2 X Analog Audio CD Music line Connectors (different connector)
  • 1 X Consumer IR Connector
  • 1 X Standard IR Connector (Infrared)
VIA Health Monitor
  • VIA Hareware Monitoring to Track CPU & SYSTEM Temperature, Voltage, Fan speed, Monitoring your Computer
  • Driver For Win95/98 and NT4.0
On Board USB
  • 6 X USB Ports Connector
  • Support USB Keyboard & USB Mouse
Power Saving
  • ACPI/APM Power Management
  • Modem Ring remote wake up
  • RTC Alarm Wake up
  • Support Software Suspend & Power off
  • Wake on LAN For OS
  • Support Power Button Ride (Instant off or Delay 4 second power off)
  • STR (Suspend To RAM) support (866AS/866AS-R Only)


Power Supply
  • Support 20-pin ATX power supply (ATX-PW)
BIOS
  • Award BIOS , Support Green function, Plug and Play Function
  • 2MBit Flash ROM
Dimension
  • ATX Form Factor with 30.5cm X 24.4cm
