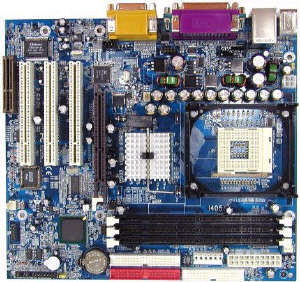

I405/I405L
BIOS Download
Manual Download
Driver Download
Check CPU Support
FEATURES [SPECIFICATION]
Support Socket 478B processor for Intel Pentiumò 4 (mPGA478) package
processor ,Support 400MHz System Bus Frequency
Intel 845 memory Cotroller Hub and 82801BA (ICH2) chipset
On-Board 10/100 BaseT LAN (I405L Only)
Extend AGP Slot Support 4X AGP
PC'99 Ready & PC'99 Colorful I/O Ports Design
Support USB Controller & PS/2 Mouse , Standard IR (infrared) Function
Provide extra " three-wire" fans connectors
Magic Frequency Setting
Jumperless
CPU Vcore Voltage Minor Adustable in BIOS
BIOS Write Protect function to avoid Virus crash data
PC Health Monitoring On Post Screen
Magic Install
Y2K Compliant
ACPI Supporting For OS Directed Power Management
Modem Ring remote wake up
RTC alarm wake up
Wake on LAN For OS
Support software suspend & power off
Power Button Ride (Instant off or Delay 4 second power off)
|
| SPECIFICATION |
| Processor |
- Support Socket 478B
processor for Intel PentiumÒ 4 (mPGA478)
package processor ,Support 400MHz System Bus Frequency
|
| Chipset |
- Intel
845 memory Cotroller Hub (MCH)
- 82801BA (ICH2) chipset
(ICH2)
- On Board Realteck RT100 PCI lan chip (I405 only)
|
| CPU Bus Frequency |
- CPU Bus Frequency , Choose One Step Add 1MHz From 100MHz Up to 132MHz
in BIOS Setup (Frequency Magic Setting)
|
| Jumpless |
- Support Jumpless Function by BIOS SETUP Let Users More Easier to
Change The Frequency And Ratio
|
| Expansion Slot |
- Three 32-bit PCI Bus Master Slots
- One CNR Slot
- One 4X AGP Slot
|
| System Memory |
- Support 3X 168 pin DIMM Socket Support Max 3GB 3.3V unbuffered , ECC
PC100/PC133 SDRAM
|
| On Board IDE |
- Support 2 X IDE Connectors for up to 4 IDE Drives
- Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing
for up to 16M Bytes/s
- Support UTRA DMA-100 Bus Master IDE, Provide faster transfer rate up
to 100M Bytes/s
- Support LS-120 / ZIP Device
|
| Realtek RT8100 PCI Lan Controller Chip (I405L
only) |
- IEEE802.3 10/100 BASE T Standards
- BIOS Boot-up from Lan
|
| On Board 3D Audio |
- Software Audio Controller With On Board CODEC Complete to AC97'
- Support 3D Surround
- Support 3D Positioning
- Full Duplex Operation For Simultaneous Record And Playback
- Sound Driver for Windows 95 , Windows98 & Windows NT4.0 , Media Rack
|
| On Board Ultra I/O |
- On Board Winbond Chipset
- 2 X Serial Ports (16550 Fast UART Compatible)
- 1 X Parallel Port (EPP and ECP capabilities)
- 1 X Floppy Disk Connector (Supports 2 Floppy Drivers)
- 1 X PS2 Mouse Connector
- 1 X Keybord Cnnector
- 3 X Three Wire FAN Connector (Include CPU FAN)
- 1 X LINE IN / LINE OUT / Microphone Connector
- 1 X Game Port Connector (Support Two Joysticks)
- 2 X Analog Audio CD Music line Connectors (different connector)
- 1 X Consumer IR Connector
- 1 X Standard IR Connector (Infrared)
|
| Winbond Hareware Doctor |
- Winbond Hareware Doctor to Track CPU & SYSTEM Temperature, Voltage,
Fan speed, Monitoring your Computer
- Driver For Win95/98
|
| On Board USB |
- 4 X USB Ports Connector
- Support USB Keyboard & USB Mouse
|
| Power Saving |
- ACPI/APM Power Management
- Modem Ring remote wake up
- RTC Alarm Wake up
- Support Software Suspend & Power off
- Support Suspend to DISK
- Wake on LAN For OS
- Support Auto Power ON After Power Fail Function
- Support Keyboard Password / Hot-Key / Any Key Power on Function
- Support PS2 Mouse Button Click Power On
- Support Keyboard98 Power on Function
- Support Power Button Ride (Instant off or Delay 4 second power off)
|
| Power Supply |
- Support 20-pin ATX power supply (ATX-PW)
|
| BIOS |
- Award BIOS , Support Green function, Plug and Play Function
- 2MBit Flash ROM
|
| Dimension |
- Micro ATX Form Factor with 24.5cm X 22.0cm
|
