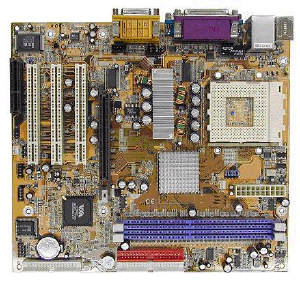

| V266DM
 |
| SPECIFICATION |
| Processor |
- Support Socket-A for AMD Athlon /Duron TM uni-proccessor at 266MHz
Front Side Bus with double data rate
|
| Chipset |
- VIA Apollo
KT266A(VT8366A) System controller and
VT8233A High Bandwidth Vlink Client South
Bridge
|
| CPU Bus Frequency |
- CPU Bus Frequency , Choose One Step Add 1MHz From 100MHz Up to 200MHz
in BIOS Setup (Frequency Magic Setting)
|
| Jumpless |
- Support Jumpless Function by BIOS SETUP Let Users More Easier to
Change The Frequency
|
| Expansion Slot |
- Three 32-bit PCI Bus Master slots
- One CNR (Communication Network Raiser) Slot
|
| System Memory |
- 2 x 184-pin DDR Module Socket support 2.5V DDR200/DDR266 DDR SDRAM up
to 2.0GB System memory.
|
| On Board IDE |
- Support 2 X IDE Connectors for up to 4 IDE Drives
- Support PIO Mode 3 and Mode 4 and Bus Master IDE DMA, Mode 4 Timing
for up to 16M Bytes/s
- Support UTRA DMA-133 Bus Master IDE, Provide faster transfer rate up
to 100M Bytes/s
- Support LS-120 / ZIP Device
|
| AGP SLOT |
- Support 4X AGP VGA Mode for 266MHz of AD and SBA signaling
- Pipelined split transaction long-burst transfers up to 1GB/sec
|
| On Board 3D Audio |
- Software Audio Controller With On Board CODEC Complete to AC97'
- Support 3D Surround
- Support 3D Positioning
- Full Duplex Operation For Simultaneous Record And Playback
- Sound Driver for Windows 95 , Windows98 & Windows NT4.0 , Media Rack
|
| On Board Ultra I/O |
- 2 X Serial Ports (16550 Fast UART Compatible)
- 1 X Parallel Port (EPP and ECP capabilities)
- 1 X Floppy Disk Connector (Supports 2 Floppy Drivers)
- 1 X PS2 Mouse Connector
- 1 X Keybord Cnnector
- 2 X Three Wire FAN Connector (Include CPU FAN)
- 1 X LINE IN / LINE OUT / Microphone Connector
- 1 X Game Port Connector (Support Two Joysticks)
- 2 X Analog Audio CD Music line Connectors (different connector)
- 1 X Consumer IR Connector
- 1 X Standard IR Connector (Infrared)
|
| ITE Smart Guardian |
- Smart Guardian to Track CPU & SYSTEM Temperature, Voltage, Fan speed,
Monitoring your Computer
|
| On Board USB |
- 6 X USB Ports Connector
- Support USB Keyboard & USB Mouse
|
| Power Saving |
- ACPI/APM Power Management
- Modem Ring remote wake up
- RTC Alarm Wake up
- Support Software Suspend & Power off
- Wake on LAN For OS
- Support Power Button Ride (Instant off or Delay 4 second power off)
- Power Fail Recovery function
|
| Power Supply |
- Support 20-pin ATX power supply (ATX-PW)
|
| BIOS |
- Award BIOS , Support Green function, Plug and Play Function
- 2MBit Flash ROM
|
| Dimension |
- ATX Form Factor with 24.4cm X 22.5cm
|
