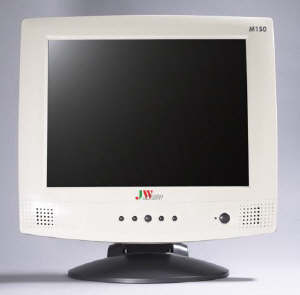

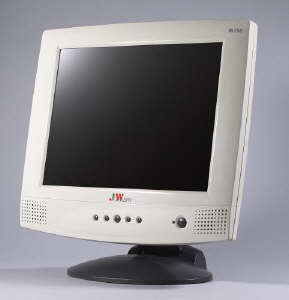

JW 15" LCD Monitor
LM151/151S-Zero Pixel Fail
 |
| LCD Display |
15" a-Si TFT Active Matrix Panel |
| Diaplsy Size |
304.1 x 228.1 mm |
| Pixel Pitch |
0.297 x 0.297 mm |
| Pixel Format |
1024 x 768 , RGB vertical stripe |
| Contrast Ratio |
300 |
| Brightness |
250 nits |
| Viewing Angle |
+80o~-80o(H),+60o~-60o(U) |
| Speaker (2W*2) |
M151S |
| Response Time |
15mS (Tr),35mS (Tf) |
| Color Depth |
16 bits ,262,144 ColorPixel |
| Input Signal |
Video (R.G.B Analog 0.7V Peak-to-Peak)
TTL Positive or Negative |
| Frequency |
H:30KHz~61KHz
V:56Hz~75Hz |
| Connector |
15 Pin Min D-sub |
| Max. Resolutioin |
1024x768 @75Hz (PC)
1024x768 @75Hz (MAC) |
| Front Control |
Power ON/OFF,OSC Menu/enter,Auto Tune UP
Select (up,down)adjust(+,-) |
| LED Indicator |
Active - Green color
No Sync - Orange color |
| OSD |
Auto-Adjustment,Contrast,Brightness,Clock,Phase,H-Pasition,V-Position,Color
Temperature,Load default |
| Plug & Play |
DDC1/2B |
| Power |
AC 110-240V,50/60Hz , DC 12V/DC
On- 36W
Off-1W
Standby-3W |
| EMI |
CE , FCC |
| VESA |
DMPS,DDC1 |
| Storage Condition |
Temperature:-20oC~60oC
Humidity 10%~95% R.H |
| Operation Condition |
Temperature:0oC~40oC
Humidity 10%~95% R.H |
|
