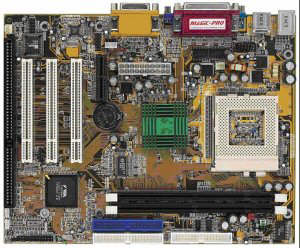

MP-6VIP-133 / MP-6VIP-T133


VIA PLE133 Micro-ATX Mainboard 全面支持Intel PPGA Celeron / Pentium III 100 /133 FSB 高性能处理器

全面支持Intel Tualatin Celeron / Pentium III 100 /133 FSB 高性能处理器 (MP-6VIP-T133 Only)

采用 VIA PLE133 北桥芯片组 + VIA 686B 南桥芯片组,支持ATA 66/100

内置 Trident Blade3D AGP Graphics Engine 显示卡 可Sharable 8MB 内存

内置 AC'97 音效

SPECIFICATION

Processor

Socket370 for Intel Celeron 566MHz-900MHz, Pentium III 1GHz Processors.

Support 100 and 133MHz Front Side Bus.

Overclocking capability with up to 166MHz frequency.

Subtle 1MHz host frequency technology.

CPU Voltage Autodetect Circuit.

Chipset

VIA 686B South Bridge & VIA PLE133 North Bridge.

VIA Hardware Monitor.

Avance Logic AC'97 3D codec.

Memory

Support PC100, PC133, SDRAM.

168pin DIMM sockets x 2.

32MB to 1GB.

Integrated Graphics

Trident Blade3D AGP Graphics Engine support AGP 1,2,4X.

2 to 8MB frame buffer using system memory.

Single cycle 128-bit 3D architecture.

2D/3D resolutions up to 1280x1024.

Flat Panel Monitor supports for all resolutions up to 1280x1024.

Expansion slot

PCI x 3 (Rev 2.2).

AMR x 1.

ISA x1 (16Bit)

Sound controller

Onboard Avance Logic AC'97 digital audio controller.

Sound blaster hardware and direct sound ready.

1 x joystick, 1 x Line-in, 1 x Line-Out, 1 x MIC, 1 x CD audio-IN port.

I/O Ports

2 x UltraDMA 33/66/100 Master mode PCI EIDE ports.

1 x FDD (Suppot 1.2/1.44/2.88 MB for 3.5 inches FDD and 360KB/1.2MB for 5 inches FDD).

2 x COM (UART 16C550 compatible).

1 x LPT (SPP/ECP/EPP supported).

PS/2 Keyboard, PS/2 Mouse onboard.

4 x USB ports (USB 1.1 and Intel Universal HCI v1.1 compatible).

IrDA connector ready.

Power

ATX power connector.

Power-on by switch, LAN, RTC, Modem.

Power-off by switch, Windows 9x/2000 shut down.

AC recovery ON/OFF control.

From Factor

ATX from factor, 4 layers PCB.

Size MicroATX 21CM x 24.4CM.

Hardware Monitor

Programmable control, status, monitor and alarm for flexible desktop management (software include).

Two positive voltage monitoring.

Two temperature monitoring.

Two fan speed monitoring,

BIOS

2Mbit flash RAM.

Award BIOS V6.0.

CPU Anti-Burn Shield.

IDE#1-#4, SCSI, LS-120, ZIP and CD-ROM bootable.

Support Plug & Play V1.0, enhanced ACPI feature.

Flash memory for easy upgrade.

Year 2000 compliant.

Support BIOS writing protection.
