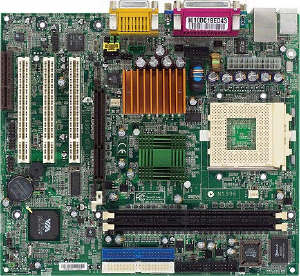

TV-Out 输出 (仅供 MS-6390-LT 选购)

- Chrontel 7005

- 预留 2 x 3 pin 输出

? 网络 ( 仅供 MS-6390-L 选购)

- 主机板内建 Realtek 8101L

- 主机板内建 RJ45 连接头

处理器

? 支持 Socket A 架构的 AMD? Athlon? / Athlon? XP / Duron? 处理器至 2200+MHz

芯片组

VIA? KM266 芯片组

-- FSB @200/266MHz

-- 内建 ProSavage8? 2D/3D 绘图控制器

-- 支持 AGP 4x 高频宽 V-link 控制器

-- 先进的内存控制器支持 PC200/266 DDR

VIA? VT8233A/8235 芯片组

-- 高频宽的 Vlink Client 控制器

-- Ultra DMA 33/66/100 模式 PCI EIDE 控制器

-- 内建 Direct sound AC'97 音效控制器

-- 支持 ACPI, APM 电源管理

-- 南桥采用 VIA? VT8235时，整合 USB 2.0

前置总线 (FSB)

支援 100/133MHz 时脉 (200 / 266MHz Internal System Bus)

内存

? 支持 2 条 184-pin DDR DIMM 内存插槽 (four memory banks)

? 最高可支持达 2GB

? 支援 2.5v DDR SDRAM DIMM

插槽 (Slots)

? 1 个 AGP (Accelerated Graphics Port) 插槽

-- 符合 AGP 规范

-- 支援 AGP 2.0 1x/2x/4x

? 1 个 CNR (Communication Network Riser) 插槽

? 3 个 PCI 2.2 规格 32-bit 主总线插槽

内建 IDE

? VIA? VT8233A/8235 芯片的 IDE 控制器提供以 PIO, Bus Master,

和 Ultra DMA 33/66/100 模式运转的 IDE 硬盘/光驱

? 可连接达四个IDE装置

音效

? 支持前置面板输出

? 南桥芯片内建音效控制芯片

-- Direct Sound AC97 音效

视讯影像

? 北桥内建 ProSavage8? 2D/3D 绘图控制器

网络

? 主机板内建 Realtek 8101L (选购品, 仅供 MS-6390-L 选购)

- 主机板内建 RJ45 连接头

内建外围输出

内建外围包含了:

? 1 个软盘机端口支持两台 360K / 720K / 1.2M / 1.44M / 2.88MB

规格软盘机

? 1 个 COM A 串行端口

? 1 个 VGA 埠

? 4 个 USB 埠 (2 个实体连结头 / 1个 2 埠 USB Front Pin Header )

注意: 当南桥芯片为 VIA 8235 时，所有的 USB 埠完全符合 USB 2.0 规范

? 1 个并行端口支持 SPP/EPP/ECP 模式

? 1 个 IrDA 接头提供 SIR/CIR/ASKIR/HPSIR 埠

? 1 个 游戏 / 音效端口

韧体 (BIOS)

? 此主机板的 BIOS 提供 "即插即用" 功能, 能自动侦测板子上的外围

设备和扩充卡

? 此主机板提供桌面管理接口(DMI)功能, 能记录你主机板的规格

规格尺寸

24.5 公分(长) x 21.6 公分(宽), MicroATX 规格

装机孔

6 个装机孔

◊ PC Alert™ III

• TV-Out Onboard (For MS-6390-LT)

- Chrontel 7005

- Reserve 2 x 3 pin out

• onboard Realtek 8101L (For MS-6390-L only)

- RJ45 connector

CPU

- Supports Socket A for AMD® Athlon™/Athlon™ XP/Duron™

processor

- Supports 1GHz to 2200+ and higher processor

Chipset

VIA® ProSavageDDR™ KM266 Chipset

- FSB @200/266MHz

- Integrated ProSavage8™ 2D/3D Graphic Controller

- AGP 4x and high bandwidth V-link host controller

- Advanced memory controller supports PC200/266 DDR

VIA® VT8233A/8235 Chipset

- High bandwidth V-link client controller

- Direct sound ready AC97 digital audio controller

- Ultra DMA 33/66/100 master mode EIDE controller

- Supports both ACPI and legacy APM power management

- USB 2.0 Integrated for VT8235 option

FSB

100/133MHz (200/266MHz) clocks are supported.

Main Memory

- Supports four memory banks using two 184-pin DDR DIMMs

- Supports a maximum memory size up to 2GB

- Supports 2.5V DDR SDRAM DIMM

Slots

* One AGP (Accelerated Graphics Port) slot

- AGP specification compliant

- Supports AGP 2.0 1x/2x/4x

* Three 32-bit Master PCI bus slots (support 3.3v/5v PCI bus interface)

* One CNR (Communication Network Riser) slot

On-Board IDE

* An IDE controller on the VT8235/8233A chipset provides IDE

HDD/CDROM with PIO, Bus Master and Ultra MA33/66/100

operation modes

* Can connect up to four IDE devices

Audio

* Front Audio supported

* South Chipset integrated

- Direct Sound AC97 Audio

Video

Integrated ProSavage8™ 2D/3D Graphic Controller

Network

* onboard Realtek 8101L (Optional, For MS-6390-L only)

- RJ45 connector

On-Board Peripherals

On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M

and 2.88Mbytes

- 1 serial port (COM A)

- 1 VGA port

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (2 Rear Connectors/ 1 USB Front Pin Header -- 2 ports)

Note: All USB ports are compatible with USB2.0 spec when 8235 chipset is integrated on the board.

- 1 IrDA connector for SIR/CIR/ASKIR/HPSIR

- 1 audio/game port

BIOS

* The mainboard BIOS provides "Plug & Play" BIOS which

detects the peripheral devices and expansion cards of the

board automatically.

* The mainboard provides a Desktop Management Interface

(DMI) function which records your mainboard specifications.

Dimension

24.5 cm(L) x 21.6 cm(W) MicroATX Form Factor

Mounting

6 mounting holes.

Special Functions

* Modem pin out

- Reserve 2 x 6 pin out

- Must use proprietary PCI Modem card with PCTEL solution

- Must work with LAN chip
