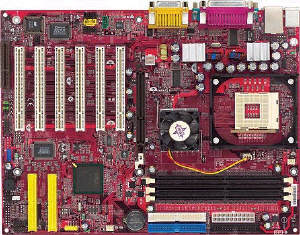

845E Max2-L

845E Max2-LR

845E Max2-BLR

CPU

* Supports Intel® Pentium® 4 processor in 478 pin package.

* Supports 1.5 ~ 2.53GHz and up.

Chipset

Intel® 845E Chipset

- Support 100MHz/133MHz system clock.

- Intel NetBurst micro-architecture supports 400MHz/533MHz

system bus.

- 1.5V AGP interface with 4x data transfer and 4x fast write

capability.

Intel® ICH4 Chipset

- 2 channel Ultra ATA 100 bus Master IDE controller.

- PCI Master 2.2.

- I/O APIC.

- AC'97 2.2 interface.

- 3 UHCI Host controllers and 1 EHCI Host controller.

FSB

- Support 100/133MHz FSB

- Support 400/533MHz Intel NetBurst micro-architecture bus.

Main Memory

* Supports four memory banks using three 184-pin DDR

DIMM.

* Supports up to 2GB PC2100/PC1600 DDR SDRAMs.

* Supports 2.5v DDR SDRAM.

Slots

* One AGP (Accelerated Graphics Port) 4x slot (1.5V only).

* Six PCI 2.2 32-bit Master PCI bus slots (support 3.3V/5V PCI

bus interface).

* One CNR (Communication Network Riser) slot.

On-Board IDE

* An IDE controller on the ICH4 chipset provides IDE HDD/

CD-ROM with PIO, Bus Master and Ultra DMA66/100

operation modes.

* Can connect up to four IDE devices.

* ATA133 RAID supported by Promise PDC20276.

(845E Max2-BLR only)

Audio

Realtek ALC650 6-channel audio

- SPDIF out (through S-Bracket only).

Network

* ICH4 Integrated LAN controller (845E Max2-BLR only)

* Intel 82562ET

- ACPI and APM supported

- Wake-On-LAN and WFM 2.0 supported

On-Board Peripherals

On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M

and 2.88Mbytes.

- 2 serial ports (COM A + COM B).

- 1 parallel port supports SPP/EPP/ECP mode.

- 1 IrDA connector for SIR/ASKIR/HPSIR.

- 1 D-Bracket™ pin header.

- 1 S-Bracket™ pin header.(Optional)

- 1 audio/game port.

BIOS

* The mainboard BIOS provides "Plug & Play" BIOS which

detects the peripheral devices and expansion cards of the

board automatically.

* The mainboard provides a Desktop Management Interface

(DMI) function which records your mainboard specifications.

Dimension

30.5 cm(L) x 23.0 cm(W) ATX Form Factor

Mounting

6 mounting holes.

Special Functions

* Bluetooth Function (For 845E Max2-BLR only)

Accessories

D-Bracket™2

(Optional, 845E Max2-L, 845E Max2-LR, 845E Max2-BLR)

USB 2.0 Cable

(Optional, 845E Max2-L, 845E Max2-LR, 845E Max2-BLR)

S-Bracket™

(Optional, 845E Max2-L, 845E Max2-LR, 845E Max2-BLR)
