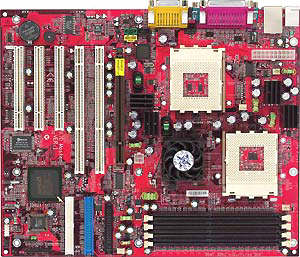

世界第一片通过Athlon MP 2200+ 认证的主机板“

? D-LED / D-Bracket (选购品)

? FuzzyLogic III

? PC Alert III (系统硬件监视)

处理器

支持双 Socket 462 架构 AMD? Athlon? MP 处理器

支持可至 Athlon MP 2100+ 或以上处理器

芯片组

AMD? 762? (949BGA) 芯片组

- 支持 200/266MHz 高速传输系统总线

- 完全兼容 AGP 2.0 接口，支持 AGP 1x, 2x, 4x 数据传输模式

- 遵循 66/33MHz, 64/32bit PCI 2.2 总线接口，最高可支持个

主总线

AMD? 768? (492BGA) 芯片组

- 主 PCI 总线为 66MHz, 32 位接口

- 包含 Enhanced IDE 控制器 (ATA100)，支持双 IDE Ultra

DMA 33/66/100 主总线

- 以 LPC 总线连接 Super IO 及 BIOS

- 支持 IOAPIC 控制器

- 支援 DirectSound AC'97 音效

- 支持 ACPI 高阶电源管理

前置总线 (FSB)

支持FSB 100MHz / 133MHz (200 / 266MHz 内部系统总线)

内存

? 支持四条 184-pin DDR DIMM 内存插槽

? 最高可支持达 4GB (仅 Registery DDR )

插槽 (Slots)

? 一个 AGP (Accelerated Graphics Port) Pro 插槽

-- 符合 AGP 4x 2.0 规范

? 两个 64位/66MHz 以及三个 32位/33MHz PCI总线插槽

-- 支持 3.3v/5v PCI 总线接口

内建 IDE

? AMD? 768? 芯片的 IDE 控制器提供以 PIO, Bus Master, 和

Ultra DMA 100 模式运转的 IDE 硬盘/光驱

? 可连接达四个IDE装置

网络 (选购品, 仅K7D Master-L)

? Intel 82559ER 网络控制器

-- 内建 IEEE 802.3 10BASE-T 以及 100BASE-TX compatible PHY

音效

芯片内建 DirectSound AC'97 音效

USB2.0 卡 (选购品, 仅K7D Master-L)

? 符合 USB2.0 规范 (Data Rate 1.5/12/480Mbps)

? Compliant with Open Host Controller Interface specification

for USB Rev 1.0a

? Root Hub with 4 external and sharing with 1 internal

downstream facing ports

内建外围

内建外围包含了:

? 一个软盘机端口支持两台 360K / 720K / 1.2M / 1.44M / 2.88MB

规格软盘机

? 两个串行端口 (COM A + COM B)

? 一个并行端口支持 SPP/EPP/ECP 模式

? 一个红外线连接头 SIR/FIR/ASKIR/HPSIR

? 四个 USB 埠 (Rear x2 / Front x2)

? 一个音效/游戏端口

韧体 (BIOS)

? 此主机板的 BIOS 提供 "即插即用" 功能, 能自动侦测板子上的外围

设备和扩充卡

? 此主机板提供桌面管理接口(DMI)功能, 能记录你主机板的规格

规格尺寸

30.5 公分(长) x 25.2 公分(宽), ATX 规格

装机孔

9 个装机孔

D-LED™

D-Bracket (Optional)

FuzzyLocgic III

PC Alert III

CPU

- Supports dual Socket A (Socket-462) for AMD® Athlon™ MP

processors

- Supports up to Athlon MP 2100+ or higher

Chipset

• AMD® 762™ chipset (949 BGA)

- Supports 200MHz High speed, split transaction system bus

- A 66/33MHz 64/32bit PCI 2.2 compliant bus interface

supports up to seven bus masters

- The 66MHz AGP 2.0 compliant interface supports 1x, 2x, and

4x data transfer mode

• AMD® 768™ chipset (492 BGA)

- Host (primary) PCI bus utilizes a 66 MHz, 32-bit interface.

- Enhanced IDE controller (through ATA100)

- LPC bus to connect peripherals such as super IO and BIOS

- Extensive ACPI-compliant power management logic

- IO APIC controller

- AC97 soft audio controller

FSB

100/133MHz clocks are supported (266 MHz Internal System Bus)

Main Memory

- Supports eight memory banks using four184-pin DDR DIMM

- Supports DDR SDRAM DIMM

- Supports a maximum memory size of 4GB (registered DDR

only)

Slots

* One AGP (Accelerated Graphics Port) Pro Slot (4X mode)

* Two 64-bit/66MHz and three 32-bit/33MHz PCI Slots

-- Supports 3.3v/5v PCI bus interface

On-Board IDE

* An IDE controller on the AMD-768™ chipset provides IDE

HDD/CD-ROM with PIO, Bus Master and Ultra DMA 100

operation modes.

* Can connect up to four IDE devices.

Network (Optional, for K7D Master-L only)

• Intel® 82559ER LAN Controller

- Integrated IEEE802.3 10-BaseT & 100-BaseTX PHY

Audio

- Direct Sound AC97 Audio

4 port USB2.0 USB card (Optional, for K7D Master-L only)

- Compliant with USB specification Revision2.0 (Data Rate 1.5/

12/480Mbps)

- Compliant with Open Host Controller Interface specification

for USB Rev 1.0a

- Root Hub with 4 external and sharing with 1 internal

downstream facing ports

On-Board Peripherals

On-Board Peripherals include:

-- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M

and 2.88Mbytes.

-- 2 serial ports (COMA + COM B)

-- 1 parallel port supports SPP/EPP/ECP mode

-- 1 IrDA connector for SIR/FIR/ASKIR/HPSIR.

-- 4 USB ports (Rear * 2/ Front * 2)

-- 1 audio/game port

BIOS

-- The mainboard BIOS provides "Plug & Play" BIOS which

detects the peripheral devices and expansion cards of the

board automatically.

-- The mainboard provides a Desktop Management Interface

(DMI) func-tion which records your mainboard.

Dimension

30.5 cm(L) x 25.2 cm(W) ATX Form Factor

Mounting

9 mounting holes.
