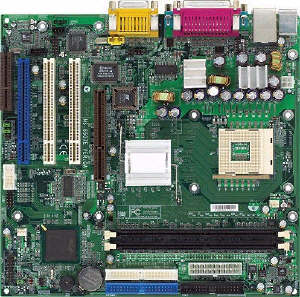

MS-6507E /MS-6507E-L

CPU

Supports Intel® Pentium® 4 processor in 478 pin package.

Supports 1.5 ~ 2.53GHz and up.

Chipset

Intel® 845E Chipset

- Support 100MHz/133MHz system clock.

- Intel NetBurst micro-architecture supports 400MHz/533MHz

system bus.

- 1.5V AGP interface with 4x data transfer and 4x fast write

capability.

Intel® ICH4 Chipset

- 2 channel Ultra ATA 100 bus Master IDE controller.

- PCI Master 2.2.

- I/O APIC.

- AC'97 2.2 interface.

- 3 UHCI Host controllers and 1 EHCI Host controller.

FSB

- Support 100/133MHz FSB

- Support 400/533MHz Intel NetBurst micro-architecture bus

Main Memory

* Supports four memory banks using two 184-pin DDR DIMM.

* Supports up to 2GB PC2100/PC1600 DDR SDRAMs.

* Supports 2.5v DDR SDRAM.

Slots

* One AGP(Accelerated Graphics Port) slot.

- Support AGP2.0 including 1x/2x/4x AGP data transfer.

- AGP 1.5V support only. No support for 3.3V or Universal AGP

connector.

* Three PCI 2.2 32-bit Master PCI bus slots (support 3.3V/5V

PCI bus interface).

* One CNR (Communication Network Riser) slot.

On-Board IDE

* Support Ultra ATA 100/66/33, BMIDE and PIO operation

modes.

* 2 channel ATA 100 IDE controller integrated.

* Can connect up to four IDE devices.

Audio

* AC'97 2.2 interface provided by ICH4

* 2 channel S/W audio codec

- AC'97 2.2 Compliant

- Meet PC2001 audio performance requirement

Network

* PCI local bus single-chip Fast Ethernet Controller

(RealTek RTL8101L) (For MS-6507E-L only)

- Integrated Fast Ethernet MAC and PHY in one chip.

- Supports 10Mb/s and 100Mb/s auto-negotiation operation.

- Compliance with PCI v2.2.

- Compliance with PC99 and PC2001 standard.

- Supports Wake-On-LAN and remote wake-up.

- Supports ACPI power management.

On-Board Peripherals

On-Board Peripherals include:

* External

- PS2 KBD + PS2 Mouse

- Parallel x 1 + Serial x 2 (COM A + COM B)

- USB 2.0 x 2 + Lan (RJ-45) x 1

- Game port + Audio (Mic_in, Line_in, Line_out)

* Internal

- Floppy port x 1, IDE x 2, ATX 12V Power Connector

- Front Panel (2 x 5 pin, Intel FPIO pin-define + 2 x 4 pin MSI

pin-define)

- Front Audio (2 x 5 pin Intel FPIO pin-define)

- USB2.0 pin header x 2 sets (2 x 5 )

- Front IR, Chassis Intrusion, Onboard buzzer, JBAT1

- CPU Fan, System Fan, Audio (CD-in, Aux-in, Modem-in)

- S/PDIF output (1 x 3) with housing

- Modem Header for optional MSI proprietary modem MS6961

BIOS

* PnP (Plug & Play) BIOS to detect peripheral devices and

expansion cards automatically.

* DMI (Desktop Management Interface) function to record

motherboard specification.

* Provide WOL, chassis intrusion and SMBus for system

management.

Dimension

24.4 cm(L) x 23.0 cm(W) MicroATX Form Factor

Mounting

6 mounting holes.
