Onboard Modem Function

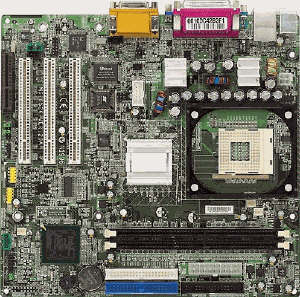

CPU
* Supports socket 478 for Intel? Pentium? 4/Celeron?
processors.
* Supports 1.3GHz to 2.4GHz or higher speed.
Chipset
Intel? 845GL (760 mBGA) Chipset
- FSB 400 MHz.
- Multiplexed AGP and Intel? DVO port interface.
- Integrated 3D/2D graphic core.
(Core frequency=200 MHz, 350 MHz integrated 24bit RAMDAC)
- Supports PC1600/2100 DDR technology.
Intel? ICH4 (421 mBGA) Chipset
- 6 ports Hi-Speed USB (USB2.0) controller, 480Mb/sec.
- AC'97 2.2 interface
- Supports both ACPI and legacy APM power management.
- Legacy free support.
FSB
- Support 100MHz FSB
- Support 400MHz Intel NetBurst micro-architecture bus.
Main Memory
* Supports four memory banks using two 184-pin unbuffered
DIMM.
* Maximum memory size is 2GB w/o ECC (1GB/slot).
* Supports 2.5V DDR DIMM.
Slots
* Three 32-bit Master PCI Bus slots.
* One CNR (Communication Network Riser) slot.
On-Board IDE
* Dual IDE controllers integrated in ICH4.
* Supports PIO, Bus Master, Ultra DMA 66/100 operation
modes.
* Can connect up to four IDE devices.
Audio
* AC'97 link controller integrated in ICH4
* Two-channel software codec ALC 201A
- Compliance with AC'97 v2.2 spec.
- Meets PC 2001 audio performance requirement.
Video
* 845G Chipset Integrated 2D/3D graphic controller
- One DB 15-pin VGA connector is supplied for connection to
a VGA monitor.
On-Board Peripherals
On-Board Peripherals include:
* External
- PS2 Keyboard + PS2 Mouse
- USB x 2 + RJ-45 (LAN port)
- Parallel + Serial x 2
- Game port + Audio (Mic_in, Line_in, Line_out)
* Internal
- Front Panel (2 x 5 + 2 x 4) with Intel? & MSI pin-definition
- Front Audio (2 x5) with Intel? pin-definition
- Front IR with Intel? pin-definition
- Chassis Intrusion, Onboard buzzer
- IDE x 2, Floppy, ATX power connector
- TV-out pinheader (Optional)
BIOS
* PnP (Plug & Play) BIOS to detect peripheral devices and
expansion cards automatically.
* DMI (Desktop Management Interface) function to record
motherboard specifications.
* Provides WOL, chassis intrusion and SMBus for system
management.
Dimension
24.4 cm(L) x 23.0 cm(W) MicroATX Form Factor
Mounting
6 mounting holes.
