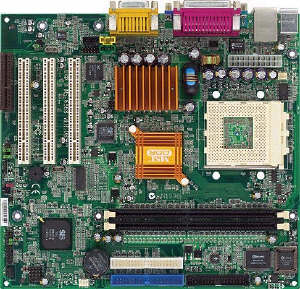

MS-6568 MS-6568-LM/ MS-6568-LMT

? TV-out 输出功能 (搭配于MS-6568-LMT)

-- SiS? 301DH MV TV Encoder

? 网络功能 (MS-6568-LM, MS-6568-LMT)

-- Realtek RTL8101L

? 调制解调器功能 (MS-6568-LM, MS-6568-LMT)

-- 支援 MS-6961

处理器

? 支持 Socket A (Socket 462) AMD? Athlon? / Athlon? XP/ Duron? 处理器

? 支持 600MHz ~ 2200+MHz 处理器

芯片组

SIS? 740 (539BGA) 芯片组

- FSB 200/266 MHz

- 内建 256位高效能 2D/3D 影像控制器

- 支援 266MHz DDR SDRAM

- 支持双屏幕SiS? 301DH MV TV encoder(搭配于 MS-6568-LMT)

SIS? 961 (371BGA) 芯片组

- 2 通道的 Ultra ATA 100/66/33 主总线 IDE控制器

- 双 USB 控制器 (可扩充兼容至 6 个埠)

- 支援 AC'97 V2.2 音效 codec 以及调制解调器 codec.

- 兼容 ACPI 1.0b 以及 APM 1.2

- LPC 1.0 界面.

- PCI 2.2 界面.

前置总线 (FSB)

支援 100/133MHz 时脉 (200 / 266MHz Internal System Bus)

内存

? 支持两条 184-pin DDR333/266/200 DIMM 内存插槽

? 最高可支持达 2GB

? 支援 2.5v DDR SDRAM DIMM

插槽 (Slots)

? 一个 CNR (Communication Network Riser) 插槽

? 三个 PCI 2.2 规格 32-bit 主总线插槽 (支持 3.3V / 5V PCI 主总线接口 )

内建 IDE

? SiS? 961芯片提供IDE 硬盘/光驱以 Ultra DMA 33/66/100

模式运作

? 可支持最多到四个 IDE 设备

音效

? 内建 AC'97 音效控制于南桥SiS? 961

? 两声道软件音效 (Realtek ALC 201A)

- 完全兼容 AC'97 V2.2规范

- 完全符合 PC2001 高效能音效要求

视讯影像

? 内建 Real256? 2D/3D 绘图加速器

- 高效能Real256?技术 3D 绘图引擎

- Ultra-AGP? 技术传输频宽2GB/s

- 先进的硬件加速 DVD Playback

- 分享主存储器可达64MB

- 完全兼容 DirectX7 绘图引擎

- 内建高效能 VLIM T/L 引擎

内建外围输出

内建外围包含了:

? 个软盘机端口支持两台 360K / 720K / 1.2M / 1.44M / 2.88MB

规格软盘机

? 一个 COM A , 一 个 VGA 埠

? 一个并行端口支持 SPP/EPP/ECP 模式

? 四个 USB 端口 (两个实体 / 两个 Front)

? 一个RJ-45 网络连结头 (选购于 MS-6568-LM, MS-6568LMT)

? 一个 游戏 / 音效端口

韧体 (BIOS)

? 此主机板的 BIOS 提供 "即插即用" 功能, 能自动侦测板子上的外围

设备和扩充卡

? 此主机板提供桌面管理接口(DMI)功能, 能记录你主机板的规格

规格尺寸

24.5 公分(长) x 22.5 公分(宽), MicroATX 规格

装机孔

6 个装机孔



• Onboard TV-out solution (For MS-6568-LMT only)

SiS® 301DH MV TV Encoder

- A NTSC/PAL video encoder with Macrovision ver. 7.1.L1 option

for TV display

- Support S-video output (TV-out) & Composite output

• LAN Function (For MS-6568-LM, MS-6568-LMT)

PCI local single-chip Fast Ethernet Controller, Realtek RTL8101L

• Modem Function (For MS-6568-LM, MS-6568-LMT)

Support MS-6961

CPU

Support Socket A (Socket 462) for AMD Duron™/Athlon™/

Athlon™ XP processor

Support Duron 600 MHz to Athlon XP 2200+ or higher speed processor

Chipset

SIS® 740 (539BGA) Chipset

- FSB 200/266 MHz

- Integrated Ultra-AGPII technology, advanced 256 bit 3D

engine and graphic display

- Support DDR SDRAM up to 266MHz

- Support dual monitor with SiS® 301DH MV TV encoder (optional, for MS-6568-LMT only)

SIS® 961 (371BGA) Chipset

- Support Dual-IDE ATA 66/100

- 2.2 PCI Master

- 6 ports USB controller

- AC'97 link controller

- Low pin count interface for SIO

FSB

100/133 (200/266)MHz clocks are supported

Main Memory

* Support four memory banks using two 184-pin unbuffered

DDR DIMM

* Support 2.5V DDR DIMM

* Maximum memory size is 2GB without ECC

Slots

* Three 32-bit Master PCI bus slots (support 3.3V/5V PCI bus

interface)

* One CNR (Communication Network Riser) slot

On-Board IDE

* Dual-IDE controller integrated in SiS961 chipset

* Support PIO, Bus Master, Ultra DMA 66/100 operation modes

* Can connect up to four IDE devices

Audio

* AC'97 link controller integrated in SiS® 961

* Two channels S/W codec ALC 201A

- Compliance with AC'97 v2.2 Spec.

- Meet PC 2001 audio performance requirement

Video

* Integrated Real256™ 2D/3D Graphics Accelerator

- High Performance Real256™ Technology 3D Graphic Engine

- Built-in 2 Pixel Rendering Pipelines and 4 Texture Units

- Ultra-AGP™ Technology Delivering 2GB/s Bandwidth

- Advanced HW Acceleration for DVD Playback

- Shared Memory up to 128MB

- Fully DirectX7 Compliant Graphics Engine

- Built-in High Performance VLIM T/L Engine

On-Board Peripherals

On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M

and 2.88Mbytes

- 1 serial port (COM A), 1 VGA port

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (Rear * 2/ Front * 2)

- 1 RJ-45 LAN jack (optional, for MS-6568-LM, MS-6568-LMT)

- 1 audio/game port

BIOS

* The mainboard BIOS provides "Plug & Play" function which

detects the peripheral devices and expansion cards of the

board automatically.

* The mainboard provides a Desktop Management Interface

(DMI) function which records your mainboard specifications.

Dimension

24.5 cm(L) x 22.5 cm(W) MicroATX Form Factor

Mounting

6 mounting holes.
