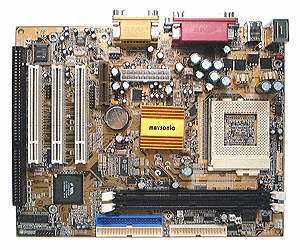

MS7188D VIA PLE133T chipset Processor

Support Socket 370 for Intel(R) Tualatin/ Pentium(R) III (FC-PGA) /CeleronTM Processor or VIA(R) C3 Processor

FC-PGA 370 for Pentium III Processor up to

1.2GHz and above

Chipset

VIA PLE133T(VT8601T/686B) two chip

AGPset

Supports 66/100/133 MHz FSB

Memory

Two 168-pin SDRAM DIMM sockets support up to 1GB

Supports PC-100 / PC-133 SDRAM

Ultra DMA 66/100 IDE Ports

Supports two IDE ports up to 4 ATAPI

devices

Supports up to PIO Mode 4 up to 16.6MBps,

Multi Mode 4 up to 100MBps with bus

mastering

SYSTEM BIOS

2MB Flash Rom on board, provides complete Advances Configuration Power Interface (ACPI) and Legacy PMU

Fully compliant to PC'97 and PC'98 Spec

I/O INTERFACE

PS/2 Mini-DIN mouse & keyboard ports

Two USB ports

One 25-pin female printer port

Two serial port

Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1

One game port

Embedded VGA on board

Chipset integrated Trident Blade 2D/3D video accelerator

BUILT IN AC97 PCI AUDIO

Built-in Sample Rate Converter to ensure all

internal operation at 48KHz

Full-duplex operation for simultaneous

recording and playback

Built-in FM-emulation music synthesizer

External high quality AC`97CODEC rovides

90dB+ SNR CD quality audio

Using wavetable data on the system memory

Hardware SoundBlaster Pro for Windows

DOS box and real-mode DOS legacy

compatibility

BUS ARCHITECTURE

3 PCI Slots

1 AMR Slot

1 ISA Slot

FORM FACTOR

Four layers, 24.4 cm x 19.0 cm

MATX form factor
