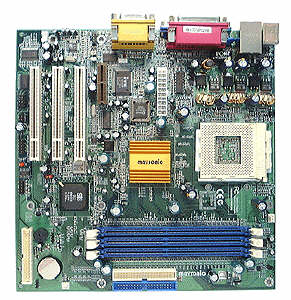

MS8318E SIS 740 Chipset

Processor

Supports Socket A (Socket-462) for AMD(R) Athlon / Athlon XP / Duron processor

Supports 600MHz up to 1900+ MHz processor and faster

Chipset

SiS740 Chipset

Supports 200/266 MHz Front Side Bus

MuTIOL®

Memory

Supports three 184-pin DDR DIMM maximum size up to 1.5GB

Ultra DMA 66/100 IDE Ports

Two independent channels for four IDE devices

Supports up to PIO mode 4 and Ultra DMA

33/66/100

Embedded LAN on board

10/100Mbps Fast Ethernet LAN on board

Supports IEEE 802.3 and 802.3u standards

Fully compliant ANSI X3.263 TP-PMD physical sub-layer

Embedded VGA on board

Embeded 256-bit 3D AGP Graphics Accelerator with 64MB frame buffer

Supports AGP 4X 266 MHz mode up to 2GB/s bandwidth

SYSTEM BIOS

2MB Flash Rom on board, provides complete Advances Configuration Power Interface (ACPI) and Legacy PMU

Fully compliant to PC'97 and PC'98 Spec

BUILT IN AC97 PCI AUDIO

Supports built-in AC97 Digital Audio.

Dual full-duplex Direct Sound channels.

H/W Sound Blaster Pro DOS Legacy compatibility.

FM Synthesis for legacy compatibility.

Supports game or MIDI port

BUS ARCHITECTURE

3 PCI Slots

1 AMR Slot

I/O INTERFACE

PS/2 Mini-DIN mouse & keyboard ports

Two USB ports

One 25-pin female printer port

Two serial port

Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1

One game port

FORM FACTOR

Four layers, 30.4 cm x 24.0 cm

ATX form factor
