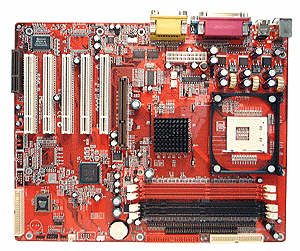

MS9047C / MS9047C+ Intel 845D chipset Processor

Support Socket 478 for Intel(R) Pentium(R) 4

1.5GHz~2.2GHz or faster Processor

400MHz system interface spee

Chipset

Intel 845 (MCH) and 82801BA (ICH2) chipset

Memory

Supports two 184-pin DDR DIMM maximum size up to 2GB

Supports two 168-pin SDRAM DIMM maximum size up to 2GB (MS9047C+ Only)

Ultra DMA 66/100 IDE Ports

Supports two IDE ports up to 4 ATAPI

devices

Supports up to PIO Mode 4 up to 16.6MBps,

Multi Mode 4 up to 100MBps with bus

mastering

BUS ARCHITECTURE

One CNR slot for Soft audio modem riser only

Five 32-bit PCI slots with full master sharing

controller (Rev 2.2 compliant)

One AGP4x slot

SYSTEM BIOS

AMI System BIOS, supports PnP, APM,

DMI,ACPI & Multi-device

booting features(floppy, LS120, CD-ROM,

HDD(IDE, SCSI), ZIP-ATAPI etc.)

BIOS Wonder technology including ChipAway

Virus, Flash BIOS Write Protect. and PC'98 Spec

Graphics Adapter Slot

Supports AGP 4x mode

CMI9738/4CH AC'97 CODEC

AC97 Codec on board to provide software

audio solution

4CH DAC, applicable for leading motherboard chipsets.

48 LQFP package(pin to pin compatible with 2-channel CODEC) and 24-lead TSSOP package.

I/O INTERFACE

PS/2 Mini-DIN keyboard and mouse ports

Two Channel USB ports

Two D-SUB 9-pin male serial ports

One D-SUB 25-pin female Printer port

One D-SUB 15-pin female Game/MIDI port

Audio Line-out, Line-in and Mic-in jacks

FORM FACTOR

304mm x 244mm, 4 Layers

ATX form factor
