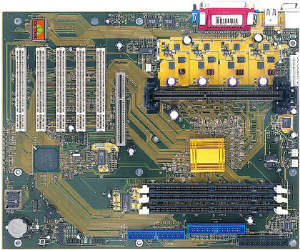

| Rhino
AM751-AAP |
 |
| CPU |
Slot A for AMD Athlon K7 CPU
Support 200MHz CPU Clock
CPU Speed from 500MHz or above |
| Chipsets |
AMD-750 AGP Chipset |
| Memory |
3 x 168-pins DIMM sockets up to 768
MB
Support PC-100 SDRAM |
| Slot |
5 x PCI, 1 x AGP |
| I/O |
2 PCI IDE ports supporting up to 4
ATA2 (UDMA33/UDMA66) IDE HDDs, CD-ROMs, ZIP devices and LS-120 drives as boot drive.
Supports bus master IDE, PIO mode 4 (up to 16M bytes/sec) and UDMA33/66 transfer mode.
(bundle with an UDMA66 IDE cable)
1 x ECP/EPP parallel port
2 x 16550-compatible UART serial ports.
One floppy port supporting two FDDs of 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB formatted
capacity
2 x USB ports
PS/2 Keyboard port and mouse port
Infrared IrDA Connector |
| BIOS |
Support SMM, APM and ACPI
2MB Flash memory for on-board programming
Wake-On-LAN/Modem Ring, Alarm resume |
| Hardware Monitoring |
Temperature, CPU and I/O voltage,
Fan speed |
| Size |
300mm x 210mm, ATX Form Factor |
|
