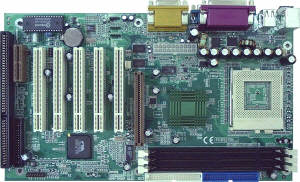

PT-694T-A

VIA? Apollo Pro 133T Chipset

General Specifications

CPU

Socket 370 for Intel? new Tualatin & FC-PGA Celeron? FC-PGA2Pentium?III

FSB 66/100/133MHz Front Side Bus

Chipset

VIA? VT82C694T (Apollo Pro 133T) North Bridge

VIA? VT82C686B South Bridge (I/O controller Hub2 ICH2)

BIOS

2Mb Flash ROM,Award BIOS,PnP,DMI2.0

Supports Green & Soft Off Function and Multiple boot-up

Green Function

Power saving supported in BIOS and ACPI & APM function

Memory Support

Three 168-pin SDRAM sockets

Up to 1.5GB of PC33/PC66/PC100 SDRAM

Expansion Slots

5 x PCI Slots support 33MHZ and PCI compliant

1 x AMR (Audio/Modem Riser) Slots

High Speed Multi I/O

USB Port

2 x USB connectors

2 x USB header support

Keyboard and Mouse

1 x PS/2 Keyboard Port

1 x PS/2 Mouse Port

Parallel Port

1 x Parallel Port

SPP,EPP and ECP mode

Serial Port

2 x Serial Port

Floppy Port

1 x Floppy disk drivers (1.44MB or 2.88MB)

IDE Ports

IDE1,IDE2 (Ultra DMA66/100) operation mode

IR Ports

1 x IrDA TX/RX header

Hardware Monitoring

2 x FAN Sensor

Audio

Audio Ports

1 x Audio I/O (Optional) Port

1 x Game/MIDI (Optional)

AC'97 Digital Audio controller, LINE-in/out CD-in, Mic-in AC'97 Compliant 3D Audio

Display Controller

AGP Support

1 x AGP 4X (1.5V only) and AGP 2.0 compliant

Environmental and Power

CPU Power

Onboard PWM switching power supply for autodetects CPU core voltage

System Monitoring and Alarm

CPU and System temperature, system voltages and cooling fan RPM

Operation Temperature

0 to 55°C (32 to 131°F)

Power Connector

ATX Power supply connector

Board Size

ATX 305mm x 201mm
