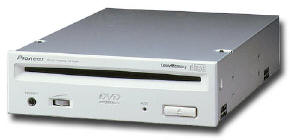

DVD-106S/116
6.6X - 16X Speed ATAPI Internal DVD-ROM Drive |
This is the fastest DVD-ROM available. The DVD-106s/116 main feature is a low-
vibration mechanism making it a very silent drive. The noise reduction is -2dB
less than DVD-115 & DVD-114. The DVD-106s/116 features up to 16x data
transfer rate (21MB/s), average random seek time of 85ms and random access
time of 95ms for DVD's. All built in half height format with Pioneers well
tested slot-in mechanism enabling safe, fast and easy access to your data.
Available in ATAPI version and able to read CD's as well as DVD's (except DVD-RAM)
this drive represents the latest in DVD-ROM technology.
 |
Feature
Highlights:
- Noise reduction: Reduce 2dB rather than DVD-115 & DVD-114
- Reads Single and Dual Layer DVD-ROM, DVD-Videos discs plus DVD-R,
DVD-RW, CD-ROM, CD-R, CD-RW and audio CDs
- High data transfer rate: DVD-ROM: 6.6X - 16X (8.9MB/s-21.6MB/s),
CD-ROM: 17.2X - 40X(2.6MB/s-6.0MB/s)
- High speed average access time: DVD-ROM: 95 MS, CD-ROM: 80 ms
- High speed average seek time: DVD-ROM: 85ms, CD-ROM: 70 ms
- ATAPI / Ultra DMA66 interface
DVD-116 (ATAPI, tray loading)**
DVD-106s (ATAPI, slot-in)
** Digital audio output/SPDIF not supported.
|
Specifications
| DVD-106s/116 |
| Playable
DVD discs (disc format) |
DVD-ROM,
DVD-Video, DVD-R, DVD-RW (not DVD-RAM) |
| Playable
CD discs (disc format) |
CD-R,
CD-RW, CD-DA, CD-ROM XA, Video CD, CD-EXTRA, CD-TEXT |
| Data
Interface |
ATAPI
(Ultra DMA66) |
| Audio
Interface |
Analog
output & Digital output (SPDIF) ** |
| Sustained
transfer speed (DVD-ROM) |
6.6x
- 16x (8.9MB/s - 21.6MB/s) |
| Sustained
transfer speed (CD-ROM) |
17.2x
- 40x (2.6MB/s - 6.0MB/s) |
| Average
access time (DVD-ROM) |
95ms |
| Average
access time (CD-ROM) |
80ms |
| Average
seek time (DVD-ROM) |
85ms |
| Average
seek time (CD-ROM) |
70ms |
| Data
buffer |
256KB |
| Mounting
orientation |
Horizontal
& Vertical |
| Regulation
approval |
UL,
CSA, TUV, FDA, FCC classB, CE Marking, EMI |
| Weight |
1.0Kg |
| MTBF |
100,000POH
(duty 20%) |
|
