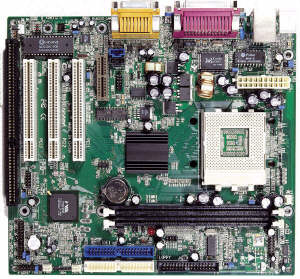

KinetiZ 7L
|
 |
|
ITEM
|
DETAIL
|
|
Chipset |
VIA KLe-133 chipset
North bridge:VIA VT8365
South bridge:VIA VT82C686B |
|
Bus Type |
3 PCI slots
1 AMR
1 ISA |
|
CPU |
Support
Socket A AMD Athlon and Duron Processors
AMD Athlon Processors at 750/800/850/900/950MHz , 1.1GHz
AMD Duron Processors at 600/650/700/750/800/850/900MHz
1.0/1.1GHz |
|
System Memory |
Two 168 pin
3.3V PC133 DIMM sockets
Supports up to 1G SDRAM maximum
Supports 66/100/133 MHz Synchronous DRAM |
|
Power Management |
Support
ACPI(Advanced configuration and power Interface) and ODPM(OS Directed power
Management)
Supports ACPI power status: S1, S4(STD), S5(soft-off) |
|
USB |
4 USB ports
(2 for I/O panel and 2 for front panel)
USB 1.1 specification compliant |
|
Bus Speed |
200MHz FSB
|
|
BIOS |
2 Mbit Flash
ROM
Licensed advanced AWARD BIOS
Supports Plug and Play
Supports ACPI and OS directed power management |
|
Storage system |
Two PCI
Master IDE ports support up to 4 IDE devices
Supports "Ultra ATA 33/66/100"
One floppy port support up to two 3.5'or 5.25'floppy drives
( 360K/720K/1.2M/1.44M/2.88M)
Supports LS-120 floppy disk drive and ZIP drive |
|
I/O Feature |
2 High Speed
Serial Ports (16550 Fast UART Compatible)
1 Enhanced Parallel Port Support EPP/ECP/SPP
4 USB ports support USB 1.1
1 PS/2 keyboard port
1 PS/2 mouse port
1 Speaker-out/1 Line-in/1 Mic-in jacks
1 Game port/MIDI port
1 15-pin VGA connector
IrDA port support up to 115.2Kb/s transfer rate
All I/O ports can be enabled/disabled by BIOS setup |
|
Graphics |
Integrated 3D
graphics engine in chipset
Share memory architecture |
Onboard Audio/
Onboard LAN |
Build in
VT82C686B
Direct Sound AC'97 Audio
AC97 2.1 compliant
16-bit stereo codec.
Onboard Realtek RTL8100 10/100Mb Ethernet LAN Controller
Boot from Lan support(K7L-L support) |
|
Advanced Feature |
PCI 2.2
Specification Compliant
Provides Trend ChipAwayVirus on Guard
Support software Power-down(eg. Windows98/Windows 2000)
Support Wake up on LAN
Support Wake up on Internal/External Modem
Support system monitoring(monitors CPU and system temperatures, System
voltages and fan speed) |
|
QDI Innovative Technology |
BootEasy,
RecoveryEasy, BIOS-ProtectEasy(to protect the system BIOS from being
attacked by virus such as CIH), ManageEasy |
|
System Health Monitoring |
CPU
temperature, System temperature, CPU fan speed
Chassis fan speed, 5 System Voltages |
|
Board Size |
MicroATX |
