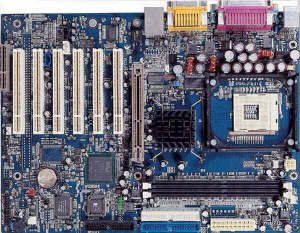

PlatiniX
2E |
 |
|
ITEM
|
DETAIL |
|
Chipset |
North Bridge: Intel 82845E MCH
South Bridge: Intel 82801DB ICH4 |
|
Slots |
1 AGP + 6 PCI + 1 CNR |
|
CPU |
Support Socket
478 processors
Support Intel Willamette-478 1.5/1.6/1.7/1.8/1.9/2.0GHz
Support Intel Northwood-478 1.6/1.8/2.0/2.1/2.26/2.4/2.53GHz |
|
System Memory |
2 X DDR SDRAM
Supports DDR 200/266
The largest total memory is up to 2GB |
|
Bus Speed |
400MHz/533MHz
|
|
BIOS |
2 Mbit
firmware Hub
Licensed advanced Award (phoenix) BIOS
Support Plug and Play
Support ACPI and OS directed power management |
|
Storage system |
Two PCI
Master IDE ports support up to 4 IDE devices
Support ATA 33/66/100
One Floppy port support up to two 3.5' or 5.25' floppy drives
(360K/720K/1.2M/1.44M/2.88M)
Support LS-120 floppy disk drive and ZIP drive |
|
I/O Feature |
2 high speed
Serial Ports (16550 Fast UART Compatible)
1 Enhanced Parallel Port support EPP/ECP/SPP
6 USB Support USB2.0 (2 on back panel,4 on front
header with optional cable)
1 PS/2 keyboard port
1 PS/2 mouse port
1 Speaker+ 1 Line in+ 1 Mic (Optional)
1 Game port (Optional)
1 RJ45 port (Optional)
IrDA port support up to 115.2Kb/s transfer rate
All I/O ports can be enabled/disabled by BIOS setup |
|
AGP 4X Slot |
1 AGP 4X slot
|
|
Onboard Audio |
AC97
Codec,with 20-bit codec support
Support 5.1 channel audio ( P2E-6A ) |
|
Advanced Feature |
PCI 2.2
Specification compliant
Support OS soft-off
Wakeup on LAN
Wake up on Modem
Power-on by keyboard password
Trend ChipAway Virus on Guard
Norton AntiVirus 2002
Boot from USB Floppy |
|
QDI Innovative
Technology |
SpeedEasy II, LogoEasy II,
RecoveryEasy II, BIOS-ProtectEasy, BootEasy,StepEasy II |
|
Power management |
Support ACPI
(Advance configration and power interface) and ODPM (OS Directed Power
Management)
CPU temperature, System temperature, CPU fan speed,
Chassis fan speed, 8 System Voltages
Power Management
ACPI V1.0 and APM Compliant
Support S0 (full-on),S1 (power on suspend),S3 (suspend to RAM),S5 (soft-off)
ACPI power status |
|
LAN |
Optional for
P2E-L |
|
Board Size |
ATX: 305mm x 224mm |
