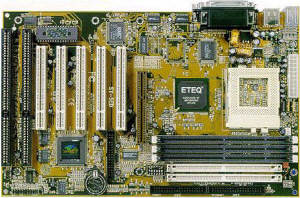

ETEQ AGP ATX Mainboard

Specifications

Processor

Intel Pentium Processor (75-233MHz)

Cyrix 6x86 (PR 120-200+), and 6x86Mx

AMD K5 (PR-100-166) and K6 (166-266MHz)

Interface

Socket 7

Chipset Type

ETEQ 6628

Chipset Description

ETEQ 6628 PCI bus chipset

Form Factor

ATX

Memory Description

3 x 168 pin DIMM memory slots

2 x72 pin SIMM memory slots

Supports 4/8/16/32/64/128Mb 72 pin modules

Supports 8/16/32/64MB 168 pin modules

Supports max 1GB with Fast Page/EDO/SRAM

Expansion Slots

4 x 32 bit Bus Mastering PCI slots (v2.1 compliant)

2 x 16 bit ISA slots (One PCI/ISA Shard slot)

1 x 32 bit AGP slot (v1.0 compliant) AGP 1x/2x

1 x Slave PCI Slot

IO Port Description

2 RS-232 Serial Ports (16550 UART compatible)

1 Parallel Printer Port (SPP/EPP/ECP mode)

1 FDD port (support LS120, 3 mode, 1.2/1.44/2.88 MB FDD)

Provides IrDA port with optional cable for transceiver

2 USB connetctor

2 PCI bus mastering ATA E-IDE ports

PS/2 mouse connector

BIOS Description

Award PCI BIOS with green ACPI, APM, PnP, DMI functions and Year 2000 compliant

Supports multiple-boot from E-IDE/SCSI/CD-ROM/ FDD/LS120/ZIP

1 Mbit Flash ROM

Dimension Description

4 layer PCB, 30.5cm x19cm, ATX form factor

Compatibilities

WinNT / Win98SE / Win95 / Win31 / FreeBSD

Warranty

All SOYO products are designed to offer stability and flexibility, and are tested to ensure highest reliability. We offer a 1 year limited warranty on this SOYO product.
