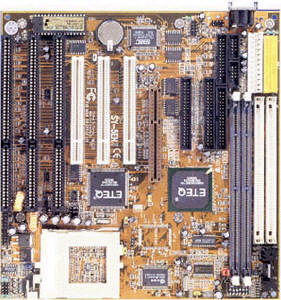

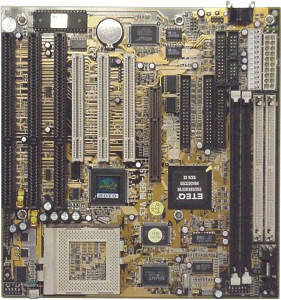

ETEQ AGO Baby ATX Mainboard
Specifications
--------------------------------------------------------------------------------
Processor
Intel ZIF Socket 7 processors
Intel Pentium processors (100-233 MHz)
Cyrix 6x86 (PR 150-266), and 6x86 MX and MII
AMD K5 (PR 100-166), K6 (166-300 MHz) and K6-2 (266-400 MHz)
Interface
Socket 7
Chipset Type
VIA MVP3
Chipset Description
ETEQ 82C6638AT / 6629 AGP chipset
Form Factor
Baby ATX
Memory Type
SDRAM
Memory Description
2 x 168 pin SDRAM DIMM memory slots
2 x 72 pin SIMM memory slots
Supports 8/16/32/64/128MB 168 pin modules
Supports 4/8/16/32/64MB 72 pin modules
Supports up to 576MB
Expansion Slots
1 x 32 bit AGP slot (v1.0 compliant) AGP 1x/2x
3 x 32 bit Bus Mastering PCI slots
3 x 16 bit ISA slots (one shareable PCI/ISA slot)
1MB Pipeline Burst SRAM on board
IO Port Description
1 FDD port (supports LS120, 3mode, 1.2/1.44/2.88 FDD)
2 RS-232 Serial Ports (16550 UART compatible)
1 Parallel Printer Port (SPP/EPP/ECP mode)
2 PCI Bus Mastering ATA E-IDE ports, support LS120/ZIP
2 USB ports with optional cable
PS/2 Mouse Port with optional cable
IrDA port with optional cable for transceiver
BIOS Description
Award PCI BIOS with green, plug and play, NCR, SCSI and DMI functions
Supports multi-boot from E-IDE, SCSI, CD-ROM, FDD, LS120 or ZIP
1 Mbit Flash ROM
Dimension Description
4 Layer PCB
22 cm x 23 cm
ATX form factor
Compatibilities
Win2000 / WinNT / WinME / Win98SE / Win95 / FreeBSD
Warranty
All SOYO products are designed to offer stability and flexibility, and
are tested to ensure highest reliability. We offer a 1 year limited warranty
on this SOYO product.
--------------------------------------------------------------------------------
Intel Pentium Motherboards
Intel Pentium MMX Motherboards
AMD K6 III Motherboards
AMD K6 2 Motherboards
AMD K6 Motherboards
AMD K5 Motherboards
Cyrix 6x86 Motherboards
Cyrix 6x86MX Motherboards
Cyrix MII Motherboards
Features
--------------------------------------------------------------------------------
Supports MMX technology
Supports 100 MHz hose bus
PC97 ACPI specification-compatible
Ultra DMA 33 / ATA E-IDE Interface
Smart Detect CPU Voltage
Wake Up on LAN header
