Supports for Super7 Platform

Supports 66/68.5/75/83/95/100/112/124 MHz host bus frequency

Supports a full range of CPU core voltage (2.0v~3.5v) with switching regulator for future processors

Provides Pentium II processor-based performance at a Socket 7 price level

PC 97 ACPI compliant

WOL(Wake On LAN) header

DMI (Desktop Management Interface) Utility

Advanced Management Capabilities Software power off control, Power-on by RTC Alarm, Modem Ring On, Fan off in suspend mode

Description

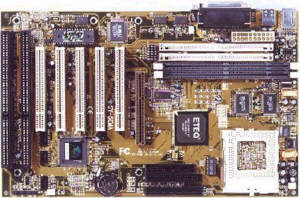

100MHz Host Bus Pentium Processor Based ATX Mainboard with AGP Port

Processor

Intel Pentium Processor with MMX Technology up to 233MHz

Supports AMD-K6 (166~300 MHz) and AMD-K6-2 (266~450 MHz) and

AMD-K6-3 400 MHz*

Supports Cyrix /IBM 6x86MX (PR200 ~ 266), 6x86MII (300 ~ 366)

Supports IDT WinChip2(200~300)?and WinChip (266~300)Supports Rise (PR233 ~ 266)

Chipset

ETEQ 82C6638/6629 AGP Chipset

L2 Cache

1MB Pipelined Burst SRAM on board

System Memory

Three 168-pin DIMM sockets (8/16/32/64/128/256MB Module)

Supports up to 768MB EDO and SDRAM

Expansion Slots

1 x 124 bit AGP slot

5 x 32-bit Bus Mastering PCI slots

2 x 16-bit ISA slots (One shareable PCI/ISA slot)

On Board Ultra I/O Chip

SMC 37C669 Super I/O chip

2 x RS-232 serial ports (16550 UART compatible)

1 x Parallel printer port (SPP/EPP/ECP mode)

Provides IrDA port with optional cable for transceiver

Two Ultra DMA-33 IDE ports

Supports two independent channels for four IDE devices

Supports up to PIO mode 4 and Ultra DAM/33

2 x PCI bus mastering ATA E-IDE ports

Boot-Block Flash BIOS

Award PCI BIOS with green, plug and play, DMI functions

Supports multiple-boot from E-IDE / SCSI /CD-ROM / FDD /LS120 / ZIP, and Year 2000 compliant

1 Mbit Flash ROM

Board Dimensions

Four layers, 30.5 cm x 19 cm (12" x 7.5")

ATX form factor

Double Stack Back-Panel I/O Connectors

PS/2 Mini-DIN mouse & keyboard ports

2 x USB ports

2 x D-Sub 9-pin male Serial ports

1 x D-Sub 25-pin female printer port

FCC Class B and CE EMI Regulation Compliant
