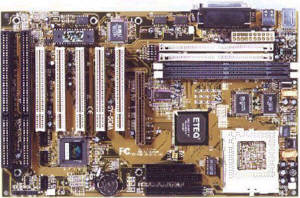

100 MHz Super 7™ AGP ATX Motherboard

Specifications

--------------------------------------------------------------------------------

Processor

321-pin ZIF Socket 7

Intel Pentium Processors (75~200 MHz)

Intel Pentium Processors with MMX™ Technology (166~233 MHz)

AMD K5™ (PR100~166), AMD K6™ (166~300 MHz) and AMD K6-2™ (266~400 MHz)

VIA Cyrix / IBM 6x86™ (PR120~200), 6x86MX™ (PR166~266), Cyrix M II™ (300~333 MHz), IBM 6x86MX™ (PR300, 333)

Interface

Socket 7

Chipset Type

VIA MVP3

Chipset Description

ETEQ 82C6638 / 6629 AGP chipset

I/O Chip: SMC 37C669

Form Factor

ATX

Memory Type

SDRAM

Memory Description

Two 168-pin SDRAM DIMM memory slots

Two 72-pin SIMM memory slots

Supports 8/16/32/64/128/256MB 168-pin modules

Supports 4/8/16/32/64 72-pin modules

Supports up to 512MB EDO and SDRAM

Write-Back Cache Controller

1MB Pipeline Burst SRAM on board

Expansion Slots

One 32-bit AGP slot (v1.0 compliant), AGP 1x/2x

Five 32-bit Bus Mastering PCI slots

Two 16-bit ISA slots (one shareable PCI/ISA slot)

Expansion Slot Types

Five 32-bit Bus Mastering PCI

IDE Type

URMA 33

IDE Description

Two PCI Bus Mastering ATA E-IDE ports, supporting LS120 / ZIP

Ultra DMA 33

IO Port Description

Two RS-232 serial ports (16550 UART compatible)

One parallel printer port (SPP/EPP/ECP mode)

One FDD port (supports LS120, 3 modes, 1.2/1.44/2.88MB FDD)

Two USB ports

PS/2 Mouse Port

Provides IrDA with optional cable for transceiver

BIOS Description

Award PCI BIOS with green, plug and play, NCR, SCSI and DMI functions

Supports multi-boot from E-IDE / SCSI / CD-ROM / FDD / LS120 / ZIP

1 Mbit Flash ROM

Dimension Description

Four layers PCB, 30.5cm x 19xm (12" x 7.5")

ATX form factor

Compatibilities

Win2000 / WinNT / WinME / Win98SE / Win95 / FreeBSD

Warranty

All SOYO products are designed to offer stability and flexibility, and are tested to ensure highest reliability. We offer a 1 year limited warranty on this SOYO product.

Product Categories

--------------------------------------------------------------------------------

Intel Pentium Motherboards

Intel Pentium MMX Motherboards

AMD K6 III Motherboards

AMD K6 2 Motherboards

AMD K6 Motherboards

Cyrix 6x86 Motherboards

Cyrix 6x86MX Motherboards

Features

--------------------------------------------------------------------------------

Super 7™ Platform

Supports 66/66.8/75/83/95/100/112 MHz CPU FSB

Supports a full range of CPU core voltage (2.0v ~ 3.5v) in 0.1v increment for future processors

PC97 ACPI compliant

Ultra DMA 33 or ATA E-IDE interface

Wake On LAN header

DMI (Desktop Management Interface) Utility
