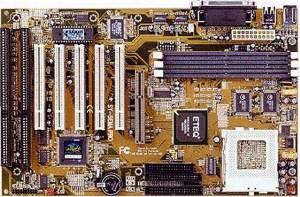

100 MHz Host Bus Pentium Processor Based ATX Mainboard With AGP Port

Specifications

--------------------------------------------------------------------------------

Processor

321-pin ZIF Socket 7

Intel Pentium processors with MMX technology (up to 233 MHz)

Supports AMD K6 (166~300 MHz) and AMD K6-2 (266~500 MHz)

Interface

Socket 7

Chipset Type

VIA MVP3

Chipset Description

ETEQ 82C6638 + VIA 686 A AGP Chipset

Form Factor

ATX

Memory Type

SDRAM

Memory Description

Three 168-pin DIMM sockets (8/16/32/64/128/256MB module)

Supports up to 768MB EDO and SDRAM

512KB Pipelined Burst SRAM on board

Expansion Slots

1 x 124 bit AGP slot (v1.0 compliant); AGP 1x/2x

5 x 32 bit Bus Mastering PCI slots

2 x 16 bit ISA slots (one shareable PCI/ISA slot)

IDE Description

Supports two independent channels for four IDE devices

Supports up to PIO mode 4 and Ultra DMA 33/66

2 x PCI Bus Mastering ATA E-IDE ports

IO Port Description

2 x RS-232 serial ports (16550 UART compatible)

1 x Parallel printer port (SPP/EPP/ECP mode)

1 x IrDA port with optional cable for transceiver

1 x FDD port (supports LS120, 3 mode, 1.2/1.44/2.88MB FDD)

IO Connection Description

PS/2 Mini-DIN mouse and keyboard ports

2 x USB ports

2 x D-Sub 9-pin male serial ports

1 x D-Sub 25-pin female printer port

BIOS Description

Award PCI BIOS with green, plug and play, and DMI functions

Supports multiple-boot from E-IDE/SCSI/CD-ROM/FDD/LS120/ZIP

1 Mbit Flash ROM

Dimension Description

Four layers, 30.5 cm x 19 cm (12" x 7.5")

ATX form factor

Certification

FCC Class B and CE EMI Regulation Compliant

Compatibilities

Win2000 / WinNT / WinME / Win98SE / Win95 / FreeBSD

Warranty

All SOYO products are designed to offer stability and flexibility, and are tested to ensure highest reliability. We offer a 1 year limited warranty on this SOYO product.

Product Categories

--------------------------------------------------------------------------------

AMD K6 III Motherboards

AMD K6 2 Motherboards

AMD K6 Motherboards

Cyrix 6x86 Motherboards

Features

--------------------------------------------------------------------------------

Supports for Super 7 platform

Supports multiple host bus frequency

Supports a full range of CPU core voltage

Provides Pentium II processor based performance at a Socket 7 price level

ACPI Compliant

Wake On LAN (WOL) header

Desktop Management Interface (DMI) Utility

Advanced Management Capabilities:

Software power off control, power on by RTC alarm, modem ring on, fan off in suspend mode
