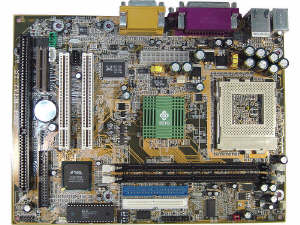

66/100/133MHz FSB Intel FC-PGA 370 Based Micro ATX Motherboard
Specifications
--------------------------------------------------------------------------------
Processor
Supports Intel FC-PGA 2 Tualatin Processors
Supports Intel FC-PGA Pentium® III and Celeron® Processors
Interface
Socket 370
Chipset Type
VIA PLE133T
Chipset Description
VIA PLE133T VT8601T+ 686B Chipset
Supports 66/100/133 MHz FSB
Graphics Info
Embedded Trident Blade 3D AGP with 2M/4M/8M Memory
Form Factor
Micro ATX
Memory Type
SDRAM
Memory Description
Two 168-pin SDRAM DIMM sockets support up to 1.0GB
Supports PC-100/PC-133 SDRAM
Expansion Slots
Two 32-bit Bus Mastering PCI slots (V2.2 compliant)
One 16-bit ISA slot (shared with one PCI)
One AMR slot
Expansion Slot Types
Two 32-bit Bus Mastering PCI slots
IDE Type
Ultra DMA 33/66/100
IDE Description
Two independent channels for four IDE devices
Supports up to PIO mode 4 and Ultra DMA 33/66/100
Two PCI bus mastering ATA E-IDE ports
Audio Description
AC97 Codec on board to provide software audio solution
IO Port Description
Two RS-232 serial ports (16550 UART compatible)
One parallel printer port (SPP/EPP/ECP mode)
One FDD port (Supports 3 mode, 1.2/1.44/2.88 MB FDD
Provides 4 USB ports (2 rear, 2 Pin Header)
IO Connection Description
PS/2 Mini-DIN mouse & keyboard ports
Two USB 1.1 ports
0ne RJ45 connector
One D-Sub 25-pin female printer port
One D-Sub 9-pin male serial port
One VGA port
Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1
One game port
BIOS Description
Award PCI BIOS with ACPI functions
Supports multiple-boot from E-IDE/SCSI/CD-ROM/FDD /ZIP
2 Mbyte Flash ROM
Health Monitoring Description
On-board voltage monitors for +5V, +12V, Vcore, VTT
System health status detect
System temperature sensor
CPU temperature monitoring through flexible thermal sensor
Dimension Description
Four layers, 25 cm x 19.0 cm
Micro ATX form factor
Certification
FCC Class B and CE EMI Regulation Compliant
Compatibilities
WinXP / Win2000 / WinNT / WinME / Win98SE / Win31
Warranty
All SOYO products are designed to offer stability and flexibility, and
are tested to ensure highest reliability. We offer 1 year limited warranty
on all SOYO products.
Product Categories
--------------------------------------------------------------------------------
Intel Tualatin Motherboards
Intel Pentium III Motherboards
VIA C3 Motherboards
Intel Celeron II Motherboards
Intel Celeron Motherboards
Features
--------------------------------------------------------------------------------
Advanced Management Capabilities *software power off control, Power-on by
Alarm, Modem Ring on
Supports on-board Hardware Monitoring and includes Hardware Health
Utility to streamline your PC system management
Supports WOL (Wake On LAN) function to simplify network management
On board 10/100 Mbps Ethernet function by PHY controller
Embedded Trident Blade 3D AGP
